Same model may have multiple batches, images only for reference.

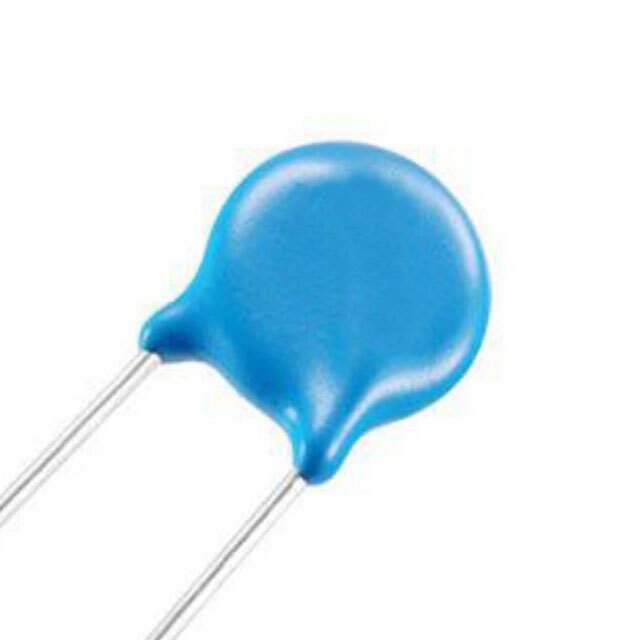

561KD10 Real Image
Same model may have multiple batches, images only for reference.

561KD10

Part No 561KD10
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV / 560 V 3.5 kA Varistor 1 Circuit Through Hole Disc 10mm
Datasheet
561KD10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Manufacturer Yageo
Packaging Bulk
Maximum AC Volts 350 V
Maximum DC Volts 460 V
Varistor Voltage (Min) 504 V
Varistor Voltage (Typ) 560 V
Varistor Voltage (Max) 616 V
Current - Surge 3.5 kA
Energy 70J
Number of Circuits 1
Capacitance @ Frequency 180 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C
Mounting Through Hole
Case / Package Disc 10mm
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Part Number 13-561KD10
Standard Package 500
Win Source Part Number 1334775-561KD10
Ultra Librarian 3D Model Ultra Librarian 561KD10 CAD Model

Description

The 561KD10 is a TVS varistor manufactured by Yageo.

  • Capacitance: 180pF
  • Varistor Voltage Range: 504V to 616V
  • Surge Current: 3.5kA
  • Maximum Energy Rating: 70J
  • Compliance: RoHS
