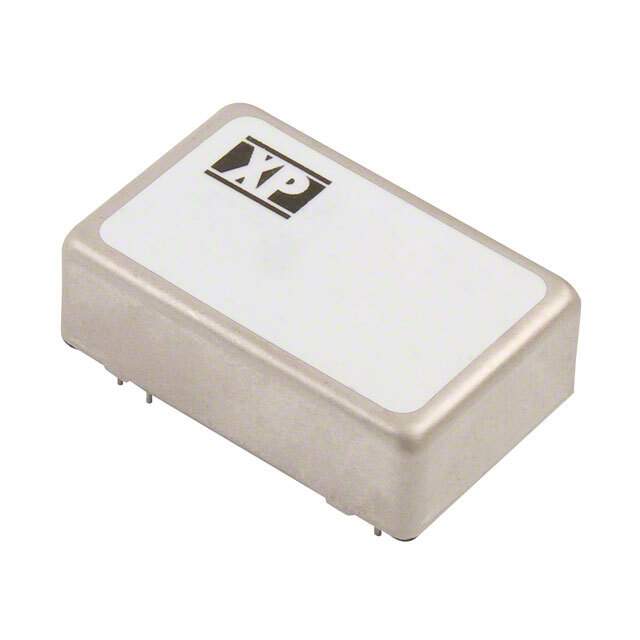

Same model may have multiple batches, images only for reference.

JTF1224S05

Name: JTF1224S05
Brand: XP Power
SKU: 1335184
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JTF1224S05
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 12W / Isolated Module DC DC Converter 1 Output 5V 2.4A 9V - 36V Input
Datasheet	JTF1224S05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	XP Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	2.4A
Power (Watts)	12 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 105°C
Efficiency	89%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Control Features	Enable, Active High
Standard Number	62368-1
Base Product Number	JTF1224
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1470-2098-5
Standard Package	10
Win Source Part Number	1335184-JTF1224S05
Ultra Librarian 3D Model	Ultra Librarian JTF1224S05 CAD Model

Alternative Products

Description

This isolated module DC-DC converter from XP Power is a high-quality electronic component designed to provide reliable performance in a wide range of applications.

Power: 12 W
Voltage Isolation: 1.6 kV
Voltage Input: 9V to 36V
Voltage Output: 5V
Current Output: 2.4A
Efficiency: 89%
Features: Remote On/Off, OCP, OVP, SCP
Mounting: Through-Hole
