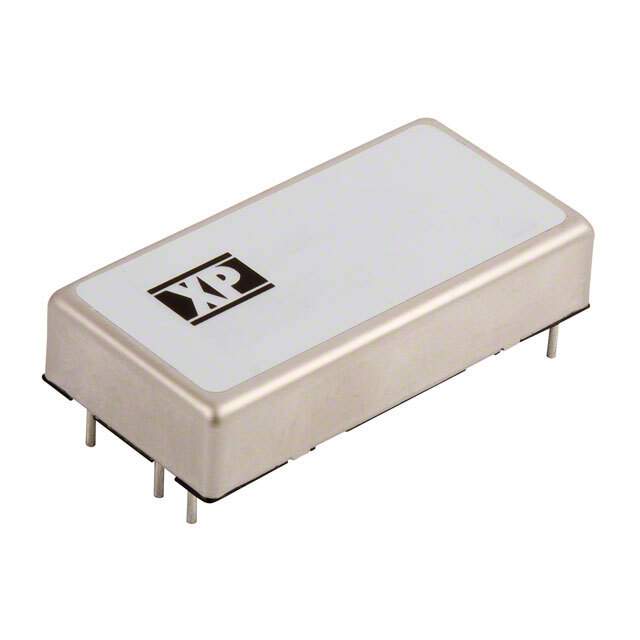

Same model may have multiple batches, images only for reference.

JCK4024D12

Name: JCK4024D12
Brand: XP Power
SKU: 1352023
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JCK4024D12
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 40W / Isolated Module DC DC Converter 2 Output 12V -12V 1.67A, 1.67A 18V - 36V Input
Datasheet	JCK4024D12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JCK (40W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	1.67A, 1.67A
Power (Watts)	40 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	JCK4024
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1352023-JCK4024D12
Ultra Librarian 3D Model	Ultra Librarian JCK4024D12 CAD Model

Alternative Products

Description

The JCK4024D12 is a DC-DC converter from XP Power.

Series: JCK (40W)
Type: Isolated Module
Power: 40 W
Package: Tube
Size/Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Number of Outputs: 2
Output Current: 1.67A and 1.67A
Input Voltage: 18V to 36V
Voltage Isolation: 1.6 kV
Control Features: Enable, Active High
Operating Temperature: -40°C to 100°C
ECCN: EAR99
REACH: Unaffected
