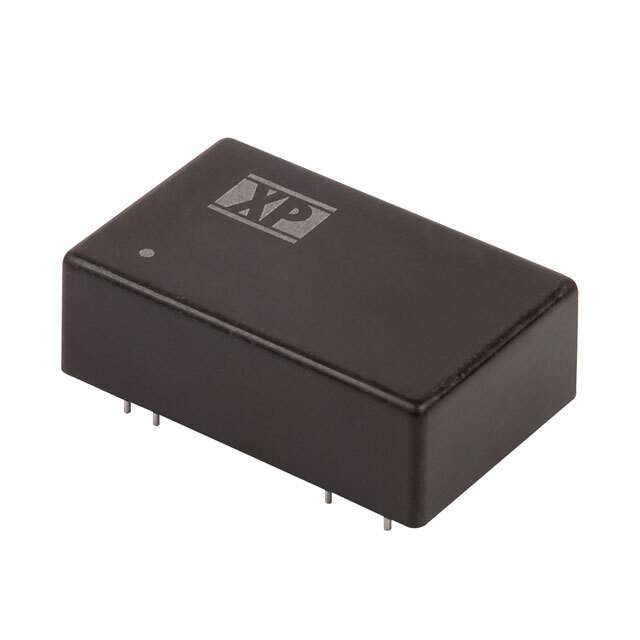

Same model may have multiple batches, images only for reference.

JCE0624S24

Name: JCE0624S24
Brand: XP Power
SKU: 1340074
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	JCE0624S24
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 6W / Isolated Module DC DC Converter 1 Output 24V 250mA 18V - 36V Input
Datasheet	JCE0624S24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JCE (6W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	24V
Current - Output (Max)	250mA
Power (Watts)	6 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OCP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	82%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 7 Leads
Size / Dimension	1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Standard Number	62368-1
Base Product Number	JCE0624
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1340074-JCE0624S24
Ultra Librarian 3D Model	Ultra Librarian JCE0624S24 CAD Model

Alternative Products

Description

The XP Power JCE0624S24 is a 6W isolated module DC-DC converter that is used in power supplies for board mount applications.

Manufacturer: XP Power
Product Name: JCE0624S24
Series: JCE (6W)
Features: OCP, SCP, UVLO
Package: Tube
Size/Dimension: 1.25 inches L x 0.80 inches W x 0.41 inches H (31.8mm x 20.3mm x 10.4mm)
Application: ITE (Commercial)
Standard Package: 10
Power: 6W
Voltage Isolation: 1.5 kV
Outputs: 1
Maximum Output Current: 250mA
Input Voltage: 18V to 36V
Output Voltage: 24V
Efficiency: 82%
Mounting Type: Through Hole
Package/Case: 24-DIP Module, 7 Leads
Standard: 62368-1
Operating Temperature: -40°C to 100°C
ECCN: EAR99.40.9580
