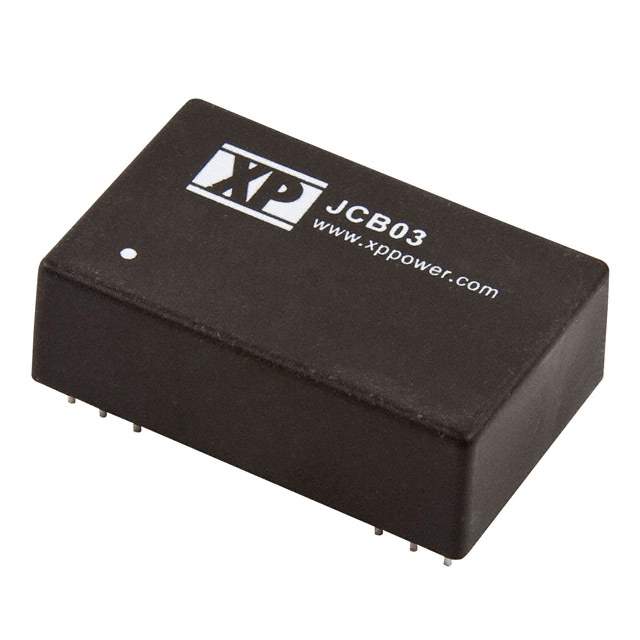

Same model may have multiple batches, images only for reference.

JCB0348D05

Name: JCB0348D05
Brand: XP Power
SKU: 1348707
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	JCB0348D05
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 3W / Isolated Module DC DC Converter 2 Output 5V -5V 300mA, 300mA 36V - 72V Input
Datasheet	JCB0348D05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JCB (3W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	72V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	300mA, 300mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OCP, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 100°C
Efficiency	78%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 14 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	JCB0348
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1348707-JCB0348D05
Ultra Librarian 3D Model	Ultra Librarian JCB0348D05 CAD Model

Alternative Products

Description

The JCB0348D05 is a 3W isolated module DC-DC converter from XP Power designed for use in various electronic devices.

Outputs: Two
Maximum Output Current: 300mA each
Voltage Input Range: 36V to 72V
Voltage Isolation: 1.5 kV
Package Size: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Series: JCB
