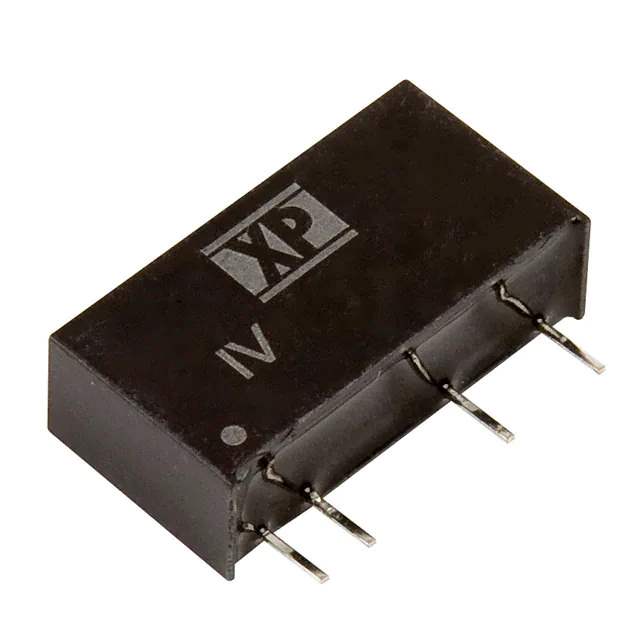

Same model may have multiple batches, images only for reference.

IV2405SA

Name: IV2405SA
Brand: XP Power
SKU: 876039
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IV2405SA
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
Datasheet	IV2405SA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	IV (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	21.6V
Voltage - Input (Max)	26.4V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	77%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Standard Number	62368-1
Base Product Number	IV2405
Standard Package	20 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	876039-IV2405SA
Ultra Librarian 3D Model	Ultra Librarian IV2405SA CAD Model

Alternative Products

Description

The IV (1W) series is an isolated module DC-DC converter with a power rating of 1W.

Size: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Application: suitable for ITE (Commercial) applications.
Voltage Isolation: 3 kV
Output Voltage: 5V.
Maximum Output Current: 200mA
Input Voltage Range: 21.6V to 26.4V.
Efficiency: 77%
Mounting: designed for through-hole mounting.
Manufacturer: XP Power
Status: currently active in the market.
