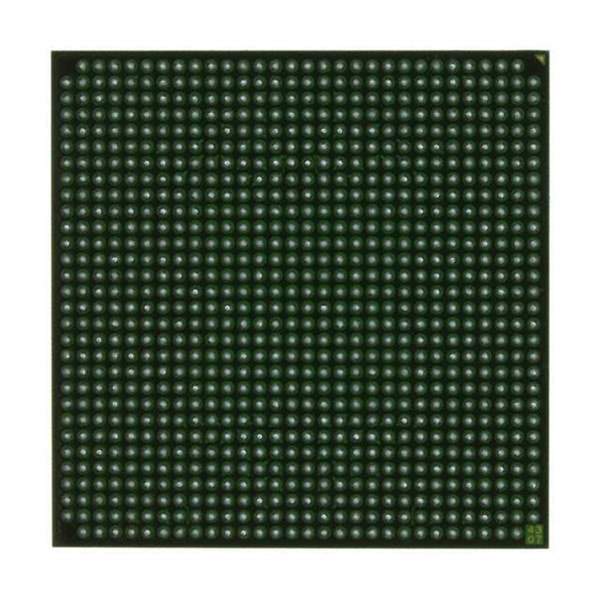

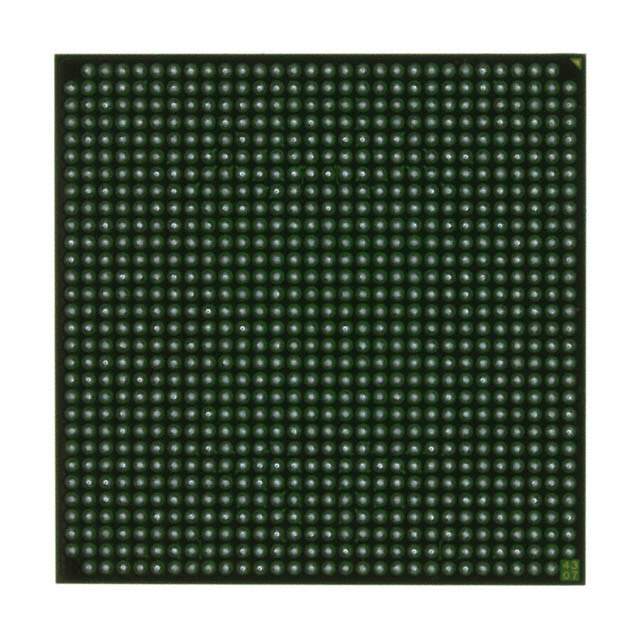

The XC2VP20-5FFG896I is a Virtex-II Pro series FPGA from Xilinx. This FPGA integrates both FPGA fabric and PowerPC processor cores, providing a versatile platform for embedded systems development. The 'FFG896' designates a Flip-Chip Fine-Pitch Ball Grid Array package with 896 pins. The 'I' indicates it is rated for the industrial temperature range.

Applications:

• Embedded Systems: Used in industrial controllers, automotive systems, and aerospace applications where both programmable logic and processing capabilities are required.
• Communication Systems: Implemented in wireless base stations, network routers, and satellite communication systems for signal processing and control.
• Image and Video Processing: Employed in video surveillance systems, medical imaging equipment, and broadcast video processing for real-time image analysis and manipulation.
• Industrial Automation: Utilized in robotic control systems, machine vision systems, and process automation equipment for data acquisition, control, and communication.
• Aerospace and Defense: Integrated into radar systems, electronic warfare systems, and guidance systems for high-performance processing and control.

Features:

• Integrated PowerPC Processors: Provides embedded PowerPC processor cores for real-time processing and control applications.
• High Logic Density: Offers a large number of programmable logic resources for implementing custom digital circuits.
• Embedded Memory: Includes on-chip block RAM and distributed RAM for high-speed data storage and retrieval.
• High-Speed Serial Interfaces: Integrates RocketIO multi-gigabit transceivers for high-bandwidth serial communication.
• Flexible I/O: Supports a wide range of I/O standards and protocols, enabling seamless connectivity to external devices.

Benefits:

• System Integration: Combines processor and FPGA functionality on a single chip, reducing board space and system cost.
• High Performance: Delivers high-speed processing and flexible logic implementation for demanding applications.
• Rapid Development: Enables fast prototyping and development of embedded systems.
• Power Efficiency: Optimizes power consumption through advanced power management techniques.
• Design Flexibility: Allows for customization and adaptation to specific application requirements.

Additional Details:

The XC2VP20-5FFG896I contains 2,338,560 system gates. It has two embedded PowerPC cores. The FPGA fabric contains 19,520 logic cells. The available distributed RAM is 1,123,968 bits. This device offers 556 available I/O pins. The core voltage for the FPGA fabric is 1.5V, and the processor core voltage is 1.8V. The speed grade is -5.
