Same model may have multiple batches, images only for reference.

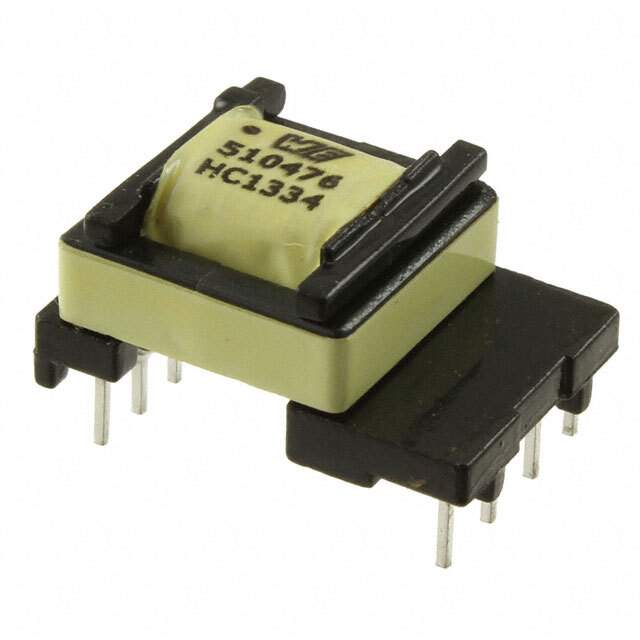

750510476 Real Image
Same model may have multiple batches, images only for reference.

750510476

Part No 750510476
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description PLC TRANSFORMER EE13 THT TI / 870µH Data/Voice Coupling Pulse Transformer 1.307:1, 1.125:1 Through Hole
Datasheet
750510476 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Würth Elektronik
Series MID-PLC
Package Tray
Transformer Type Data/Voice Coupling
Inductance 870µH
Mounting Type Through Hole
Size / Dimension 0.540" L x 0.780" W (13.72mm x 19.80mm)
Height - Seated (Max) 0.400" (10.16mm)
Standard Package 130
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1350533-750510476
Ultra Librarian 3D Model Ultra Librarian 750510476 CAD Model

Description

The MID-PLC series pulse transformer is a data/voice coupling transformer that has an inductance of 870µH.

  • Series: MID-PLC
  • Type: Data/Voice Coupling
  • Inductance: 870µH
  • Mounting Type: Through Hole
  • Size: 0.540” L x 0.780” W (13.72mm x 19.80mm)
  • Height (Max): 0.400” (10.16mm)
  • Package: Tray
  • Temperature Range: Not specified
  • REACH Status: Unaffected
