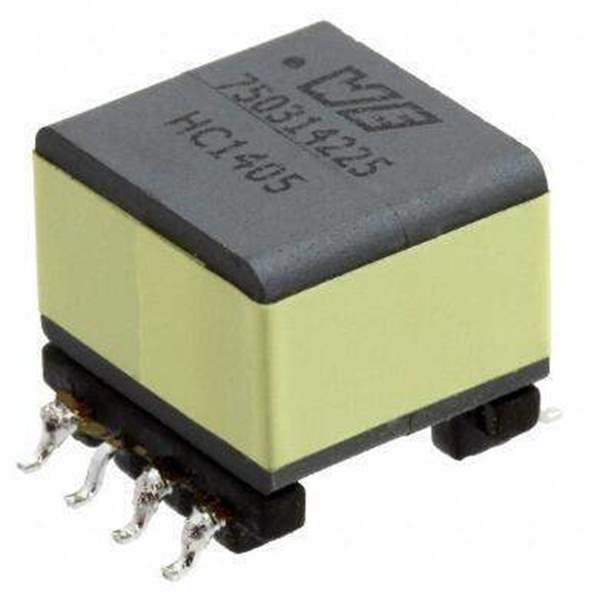

750314225Würth Elektronik
Same model may have multiple batches, images only for reference.

750314225

Part No 750314225
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description XFMR FLYBACK DC/DC CONV 50UH SMD
Datasheet
750314225 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Transformers Switching Converter, SMPS Transformers
Product Status Active
Type For DC/DC Converters
Applications Flyback Converters
Chipset Manufacturer Texas Instruments
Voltage - Primary 15 ~ 40V
Voltage - Isolation 1500Vrms
Inductance @ Frequency 50µH @ 10kHz
Frequency 250 ~ 600kHz
Operating Temperature -40°C ~ 125°C
Win Source Part Number WS1210708-750314225
Ultra Librarian 3D Model Ultra Librarian 750314225 CAD Model

Description

Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 250 ~ 600kHz Surface Mount
