Same model may have multiple batches, images only for reference.

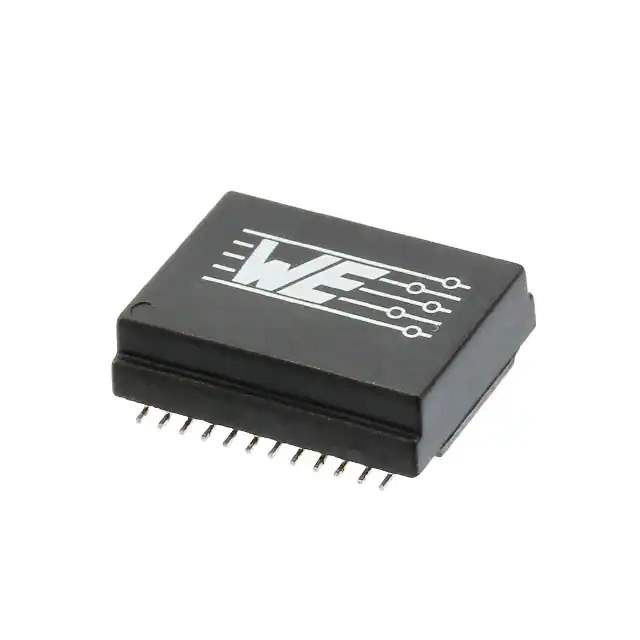

749023010A Real Image
Same model may have multiple batches, images only for reference.

749023010A

Part No 749023010A
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description TRANSFORMER LAN 10/100/1000 SMD / 350μH LAN 10/100/1000 Base-T Pulse Transformer 1:1 Surface Mount
Datasheet
749023010A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Wurth Electronics Inc
Series WE-LAN
Package Tape & Reel
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.689" L x 0.559" W (17.50mm x 14.20mm)
Height - Seated (Max) 0.236" (6.00mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 857645-749023010A
Ultra Librarian 3D Model Ultra Librarian 749023010A CAD Model

Description

The 749023010A is a pulse transformer from Wurth Electronics Inc.

  • Category: Transformers - Pulse Transformers
  • Series: WE-LAN
  • Application: LAN 10/100/1000 Base-T
  • Inductance: 350µH
  • Size: 0.689" L x 0.559" W (17.50mm x 14.20mm)
  • Mounting Type: Surface Mountable
  • Temperature Range: 0°C to 70°C
