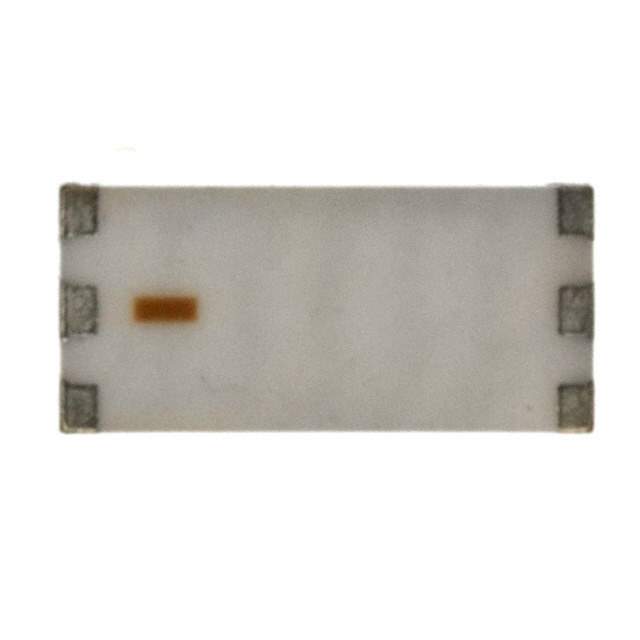

7488920245 Real Image
Same model may have multiple batches, images only for reference.

7488920245

Part No 7488920245
Manufacturer Wurth Electronics Inc
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD
Datasheet
7488920245 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Wurth Electronics Inc
Series WE-MCA
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth, Cellular, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
VSWR 2
Gain 1.3dBi
Power - Max 3 W
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.043" (1.10mm)
Applications Bluetooth, GSM, WLAN
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8517.71.0000
Win Source Part Number 857638-7488920245
Ultra Librarian 3D Model Ultra Librarian 7488920245 CAD Model

Description

The WE-MCA series from Wurth Electronics Inc is a chip antenna designed for RF and wireless applications.

  • Frequency Range: 2.4GHz ~ 2.5GHz
  • Gain: 1.3dBi
  • Applications: Bluetooth, GSM, and WLAN
  • Package: Tape & reel
  • Power: 3 W
  • VSWR: 2
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
