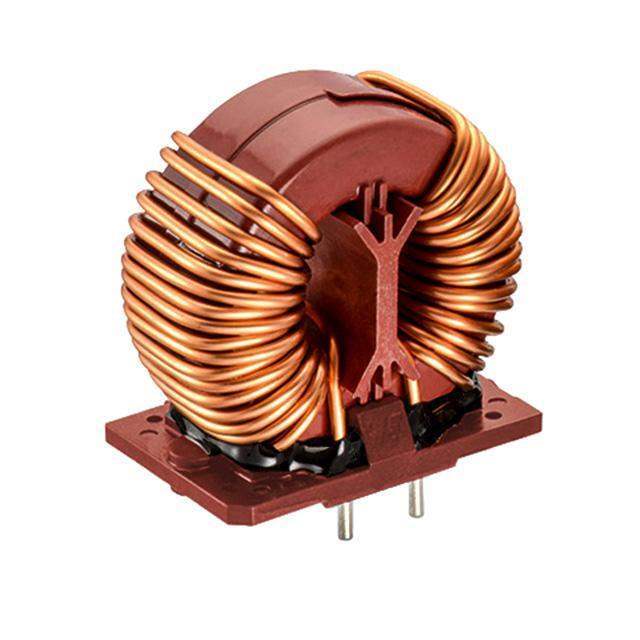

7448042001 Würth Elektronik
Same model may have multiple batches, images only for reference.

7448042001

Part No 7448042001
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1MH 20A 2LN TH
Datasheet
7448042001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197089-7448042001
Manufacturer Würth Elektronik
Category Filters- Common Mode Chokes
Series WE-CMBNC
Package Bulk
Product Status Active
Filter Type Power Line
Inductance @ Frequency 1 mH @ 10 kHz
DC Resistance (DCR) (Max) 2.4mOhm
Mounting Type Through Hole
Size / Dimension 1.181" L x 0.748" W (30.00mm x 19.00mm)
Ultra Librarian 3D Model Ultra Librarian 7448042001 CAD Model

Description

The WE-CMBNC series from Würth Elektronik is a range of common mode chokes used in power line filtering applications.

  • Package: Bulk
  • Size: 1.181" L x 0.748" W (30.00mm x 19.00mm)
  • Inductance: 1mH @ 10 kHz
  • DCR (Max): 2.4mOhm
  • Product Status: Active
