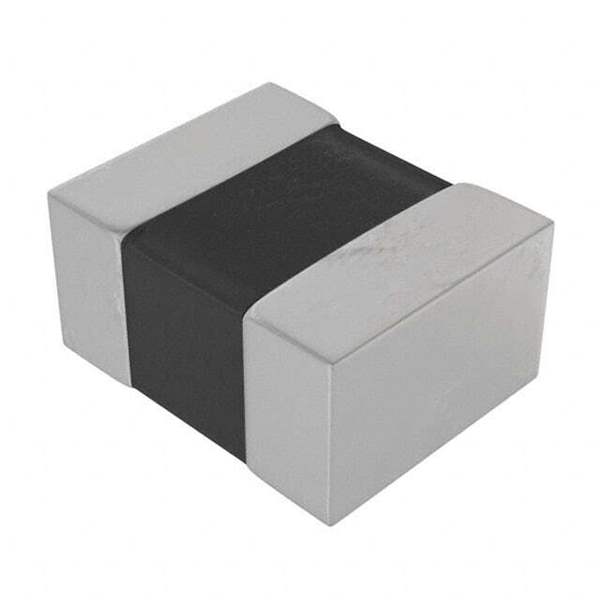

Same model may have multiple batches, images only for reference.
74479776247A
Same model may have multiple batches, images only for reference.

74479776247A

Part No 74479776247A
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.2A 175MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PMI
Package Tape & Reel
Product Status Obsolete
Type Multilayer
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 200mA
Shielding Shielded
DC Resistance (DCR) 175mOhm Max
Q @ Freq 20 @ 1MHz
Frequency - Self Resonant 30MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857608-74479776247A
Ultra Librarian 3D Model Ultra Librarian 74479776247A CAD Model

Description

The WE-PMI series fixed inductor is a multilayer, shielded inductor designed for various applications.

  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height: 0.039" (1.00mm)
  • Inductance: 4.7μH
  • Tolerance: ±20%
  • Temperature Range: -40°C to 125°C
  • DC Resistance (DCR): 175mOhm max
  • Q Value: 20 @ 1MHz
  • Self-Resonant Frequency: 30MHz
  • Manufacturer: Wurth Electronics Inc
  • Standard Package: 3,000 pcs
  • Status: Obsolete
