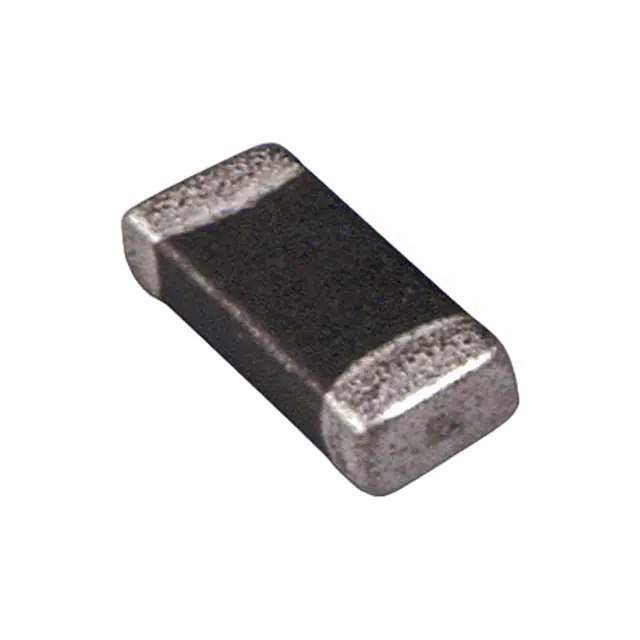

74479023 Real Image
Same model may have multiple batches, images only for reference.

74479023

Part No 74479023
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 220NH 250MA 500MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-MI
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 220 nH
Tolerance ±10%
Current Rating (Amps) 250 mA
Shielding Unshielded
DC Resistance (DCR) 500mOhm Max
Q @ Freq 20 @ 25MHz
Frequency - Self Resonant 195MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 25 MHz
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.043" (1.10mm)
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 547417-74479023
Ultra Librarian 3D Model Ultra Librarian 74479023 CAD Model

Description

The WE-MI series from Wurth Electronics Inc. offers a compact and reliable solution for inductors, coils, and chokes in electronic circuits.

  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Inductance Value: 220 nH
  • Tolerance: ±10%
  • DC Resistance (DCR): within 500mOhm
  • Mounting Type: surface mount
  • Temperature Range: -55°C to 125°C
  • Core Material: nickel zinc ferrite (NiZn)
  • Current Rating: 250 mA
