Same model may have multiple batches, images only for reference.

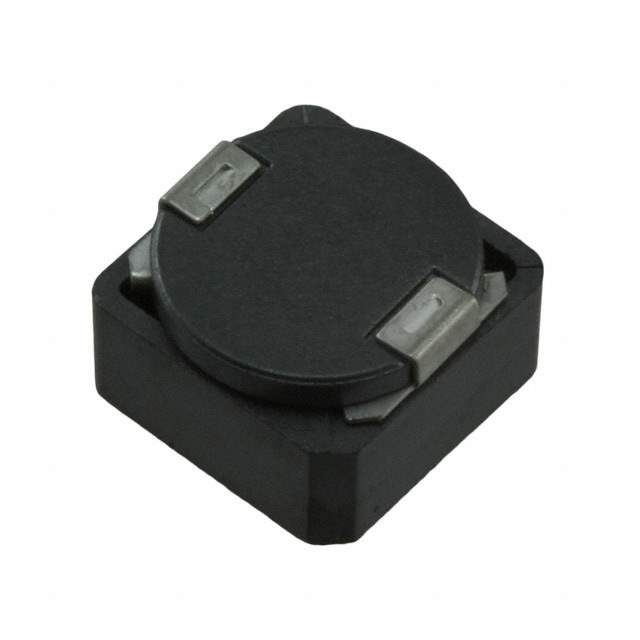

7447798181 Real Image
Same model may have multiple batches, images only for reference.

7447798181

Part No 7447798181
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 18UH 5A 34.4 MOHM SMD
Datasheet
7447798181 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PDF
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 18 µH
Tolerance ±20%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 3.8A
Shielding Shielded
DC Resistance (DCR) 34.4mOhm Max
Frequency - Self Resonant 18MHz
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Max) 0.252" (6.40mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857592-7447798181
Ultra Librarian 3D Model Ultra Librarian 7447798181 CAD Model

Description

The WE-PDF series is a range of drum core, wirewound inductors designed for various electronic applications.

  • Part Number: 857592-7447798181
  • Size: 0.402" L x 0.402" W (10.20mm x 10.20mm)
  • Height: 0.252" (6.40mm)
  • Inductance: 18 µH
  • Tolerance: ±20%
  • Shielded: Yes
  • Core Material: Nickel zinc ferrite (NiZn)
  • DC Resistance (DCR): 34.4mOhm max
  • Current Rating: 5A
  • Mounting Type: Surface Mount
  • Package: Tape & reel
  • Temperature Range: -40°C to 150°C
