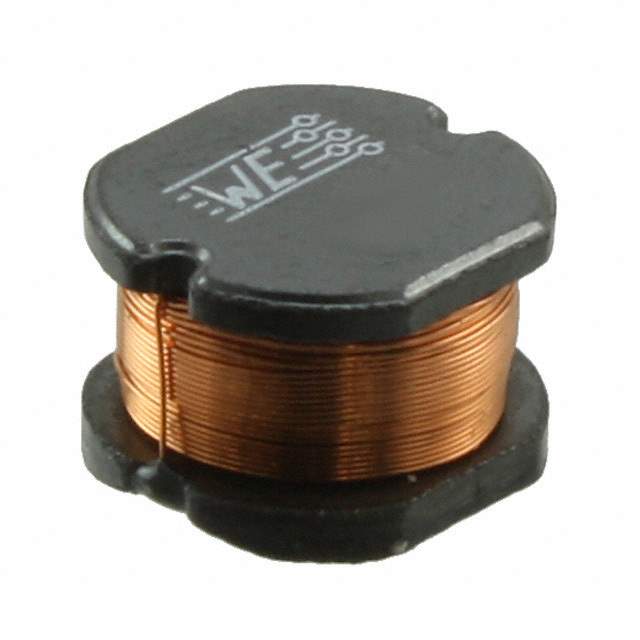

744775360 Real Image
Same model may have multiple batches, images only for reference.

744775360

Part No 744775360
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 6MH 180MA 18 OHM SMD
Datasheet
744775360 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-ASI
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6 mH
Tolerance ±10%
Current Rating (Amps) 180 mA
Current - Saturation (Isat) 90mA
Shielding Unshielded
DC Resistance (DCR) 18Ohm Max
Frequency - Self Resonant 600kHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.315" L x 0.276" W (8.00mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857560-744775360
Ultra Librarian 3D Model Ultra Librarian 744775360 CAD Model

Description

The WE-ASI series from Wurth Electronics Inc is a fixed inductor with a drum core, wirewound construction.

  • Shielding: Unshielded
  • Packaging: Tape & Reel
  • Size: 0.315" L x 0.276" W (8.00mm x 7.00mm)
  • Height: 0.217" (5.50mm) seated
  • Inductance: 6 mH
  • Tolerance: ±10%
  • DC Resistance (DCR): 18Ohm
  • Current Rating: 180mA
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Core: Ferrite
