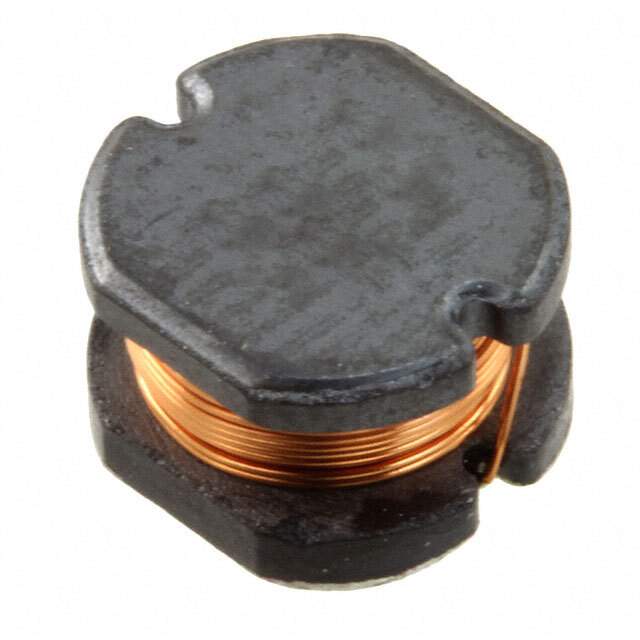

744775247 Real Image
Same model may have multiple batches, images only for reference.

744775247

Part No 744775247
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PD2 | FIXED IND 470UH 360MA 1.96 OHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 470μH
Tolerance ±10%
Current Rating (Amps) 360mA
Current - Saturation 380mA
Shielding Unshielded
DC Resistance (DCR) 1.96Ohm Max
Frequency - Self Resonant 3.4MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Maximum) 0.217" (5.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130075-744775247
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744775247 CAD Model

Description

The 1130075-744775247 wirewound inductor from Wurth Electronics Inc. has an inductance of 470μH and a tolerance of ±10%.

  • Component: Wirewound Inductor
  • Manufacturer: Wurth Electronics Inc.
  • Part Number: 1130075-744775247
  • Inductance: 470μH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Shielding: Unshielded
  • Current Saturation: 380mA
  • Frequency Self-Resonant: 3.4MHz
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1
  • DC Resistance: 1.96Ohm max
  • Operating Temperature: -40°C to 125°C
  • Popularity: Popular
  • Supply and Demand Status: Balanced
