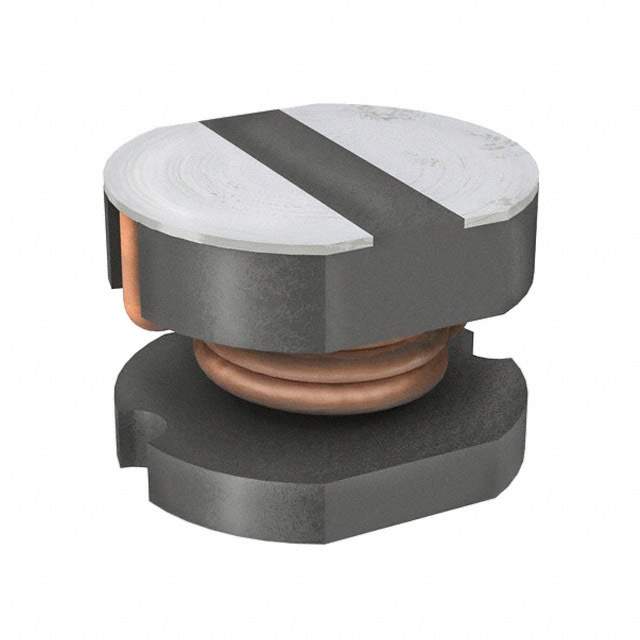

744773115 Real Image
Same model may have multiple batches, images only for reference.

744773115

Part No 744773115
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 15UH 1.2A 235 MOHM SMD
Datasheet
744773115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD2
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 1.46A
Shielding Unshielded
DC Resistance (DCR) 235mOhm Max
Frequency - Self Resonant 26MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857550-744773115
Ultra Librarian 3D Model Ultra Librarian 744773115 CAD Model

Description

The WE-PD2 series from Wurth Electronics Inc is a drum core, wirewound fixed inductor with an unshielded design.

  • Size: 0.177" L x 0.157" W (4.50mm x 4.00mm)
  • Inductance: 15 µH
  • Height: 0.138" (3.50mm) seated
  • Tolerance: ±20%
  • DC Resistance (DCR): 235mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Current Rating: 1.2 A
  • Current Saturation (Isat): 1.46A
