Same model may have multiple batches, images only for reference.

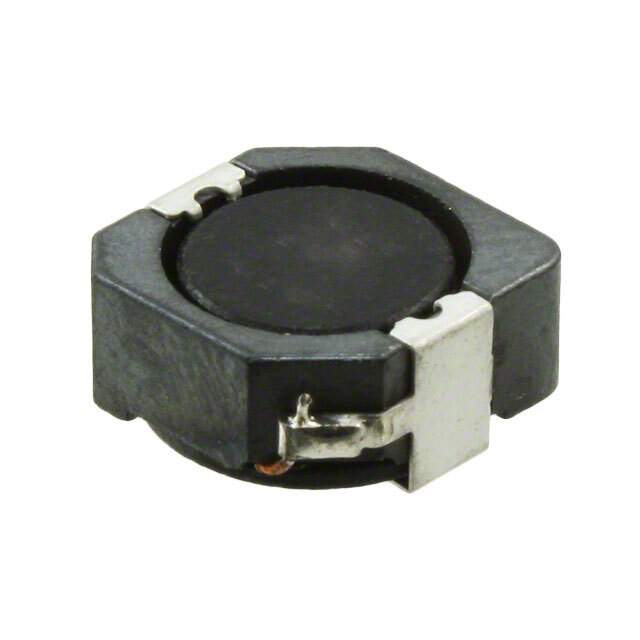

7447714056 Real Image
Same model may have multiple batches, images only for reference.

7447714056

Part No 7447714056
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 5.6UH 6A 14.4 MOHM SMD
Datasheet
7447714056 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD Performance
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 5.6 µH
Tolerance ±30%
Current Rating (Amps) 6 A
Current - Saturation (Isat) 7.2A
Shielding Shielded
DC Resistance (DCR) 14.4mOhm Max
Frequency - Self Resonant 28MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857543-7447714056
Ultra Librarian 3D Model Ultra Librarian 7447714056 CAD Model

Description

The WE-PD Performance series by Wurth Electronics Inc offers a reliable and high-performance solution for inductors, coils, and chokes.

  • Series: WE-PD Performance
  • Type: Drum core, wirewound inductor
  • Shielding: Shielded
  • Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Height: 0.197" (5.00mm)
  • Inductance: 5.6 µH
  • Tolerance: ±30%
  • DC Resistance (DCR): 14.4mOhm max
  • Current Rating: 6A
  • Operating Temperature: -40°C to 125°C
  • Compliance: AEC-Q200
  • Core Material: Ferrite
  • Mounting Type: Surface Mount
