Same model may have multiple batches, images only for reference.

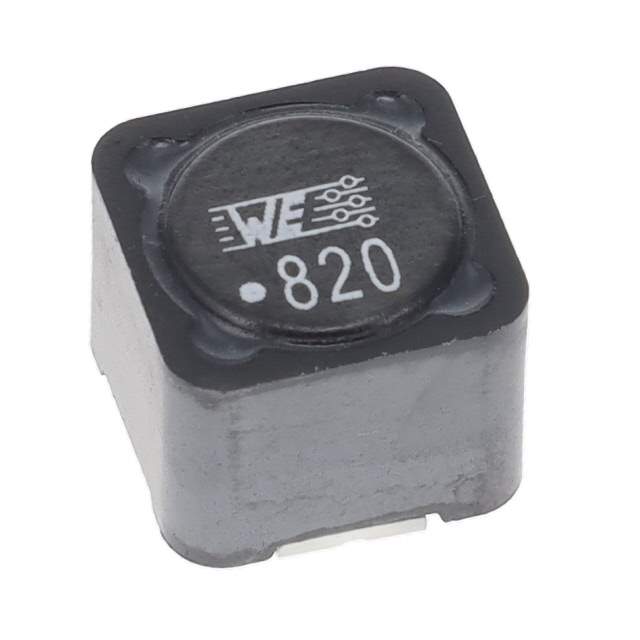

7447709820 Real Image
Same model may have multiple batches, images only for reference.

7447709820

Part No 7447709820
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 82UH 2.75A 105MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 82 µH
Tolerance ±20%
Current Rating (Amps) 2.75 A
Current - Saturation (Isat) 3.4A
Shielding Shielded
DC Resistance (DCR) 105mOhm Max
Frequency - Self Resonant 4.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857533-7447709820
Ultra Librarian 3D Model Ultra Librarian 7447709820 CAD Model

Description

The WE-PD is a drum core, wirewound inductor from Wurth Electronics Inc.

  • Series: WE-PD
  • Packaging: Tape and Reel
  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Inductance: 82µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 105mOhm
  • Operating Temperature: -40°C to 125°C
