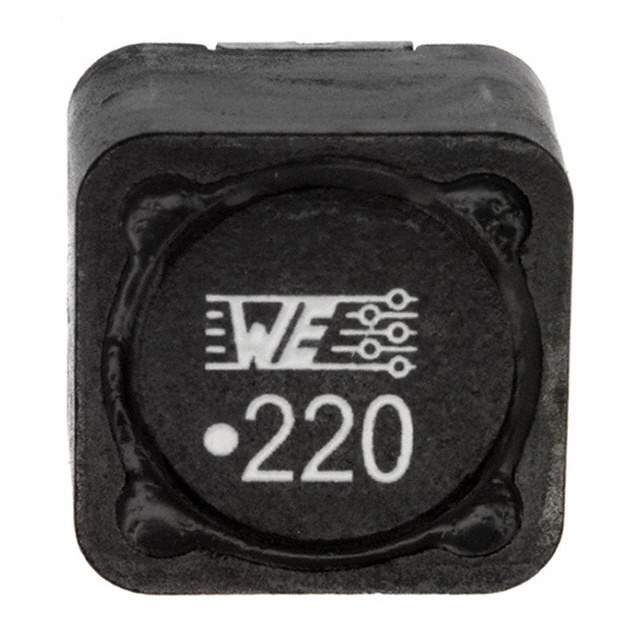

The Wurth Electronics Inc. 1130040-744770122 wirewound inductor is an AEC-Q200 rated component that features a shielded design and a ferrite core material.

• Inductance: 22μH.
• Tolerance: ±20%.
• Saturation Current: capable of handling a saturation current of 5A.
• Self-Resonant Frequency: has a self-resonant frequency of 12MHz.
• DC Resistance: 43mOhm max.
• Operating Temperature Range: -40°C to 125°C.
• Package Dimensions: The nonstandard package measures 0.315" (8.00mm) in height when seated and has a parts dimension of 0.472" L x 0.472" W (12.00mm x 12.00mm).
• Applications: It is ideal for use in inductors, coils, and chokes applications.
