Same model may have multiple batches, images only for reference.

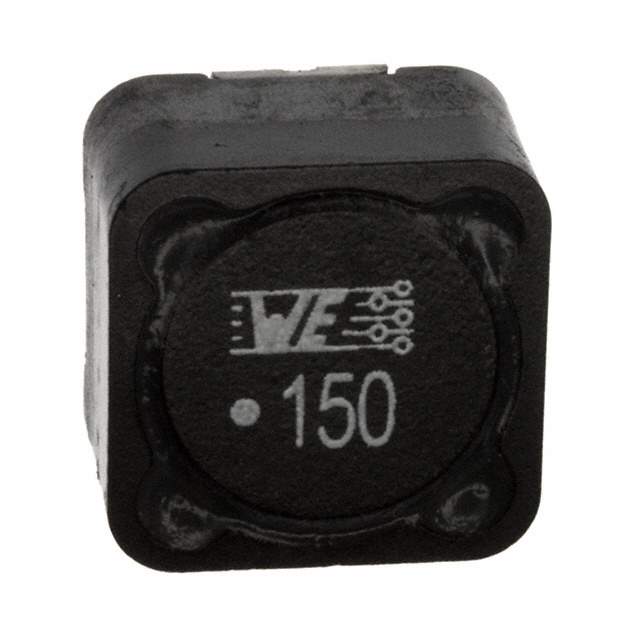

744770115 Real Image
Same model may have multiple batches, images only for reference.

744770115

Part No 744770115
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 15UH 5A 27 MOHM SMD
Datasheet
744770115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 6A
Shielding Shielded
DC Resistance (DCR) 27mOhm Max
Frequency - Self Resonant 14.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857523-744770115
Ultra Librarian 3D Model Ultra Librarian 744770115 CAD Model

Description

The WE-PD series from Wurth Electronics Inc offers high-performance fixed inductors for various electronic applications.

  • Core Construction: Drum core, wirewound
  • Shielding: Shielded
  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Height: 0.315" (8.00mm)
  • Inductance: 15 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 27mOhm
  • Current Rating: 5A
  • Frequency Self-Resonant: 14.5MHz
  • Operating Temperature: -40°C to 125°C
  • AEC-Q200 Ratings: Yes
  • REACH: Unaffected
