Same model may have multiple batches, images only for reference.

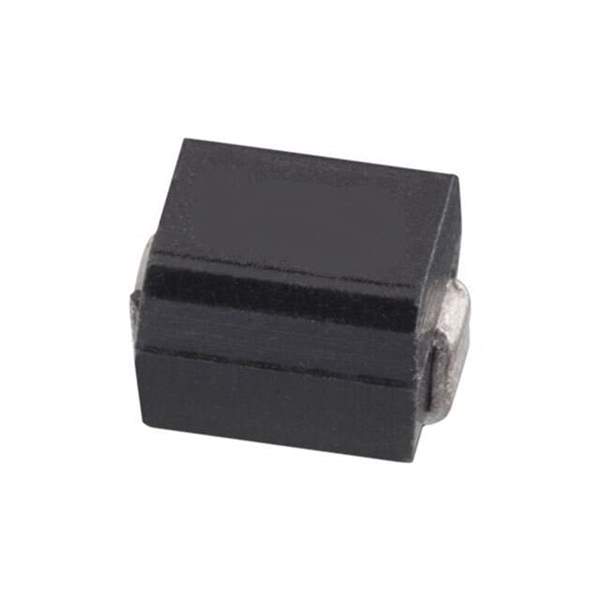

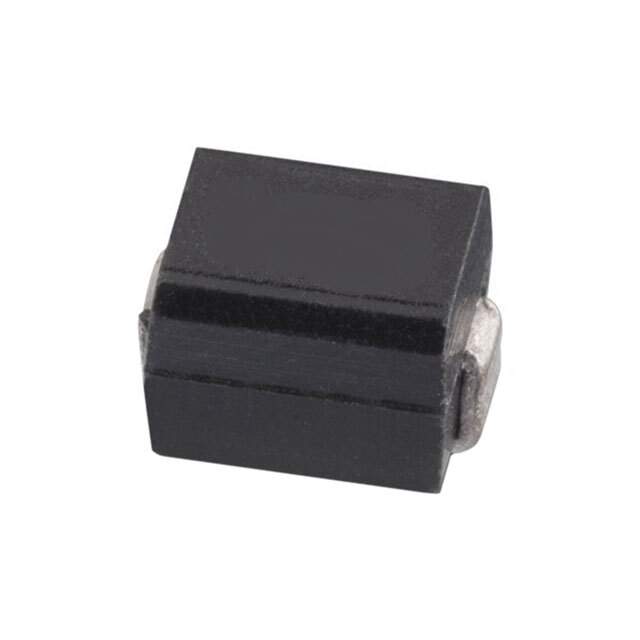

74476604 Real Image
Same model may have multiple batches, images only for reference.

74476604

Part No 74476604
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 4.7UH 315MA 1 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-GF
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±10%
Current Rating (Amps) 315 mA
Shielding Unshielded
DC Resistance (DCR) 1Ohm Max
Q @ Freq 50 @ 7.96MHz
Frequency - Self Resonant 78MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 7.96 MHz
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.142" (3.60mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857515-74476604
Ultra Librarian 3D Model Ultra Librarian 74476604 CAD Model

Description

The WE-GF series is a range of drum core, wirewound inductors designed for use in various electronic applications.

  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Inductance: 4.7 μH
  • DC Resistance (DCR): 1Ohm Max
  • Shielding: Unshielded
  • Operating Temperature: -40°C to 105°C
  • Mounting Type: Surface Mount
  • Package: Tape & reel
  • Standard Package: 500 pcs
  • Core Material: Ferrite
  • Tolerance: ±10%
  • Current Rating: 315 mA
  • Frequency Self-Resonant: 78MHz
