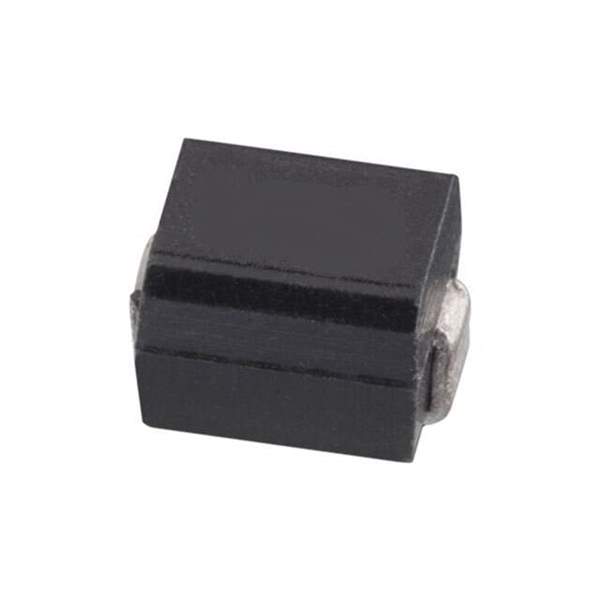

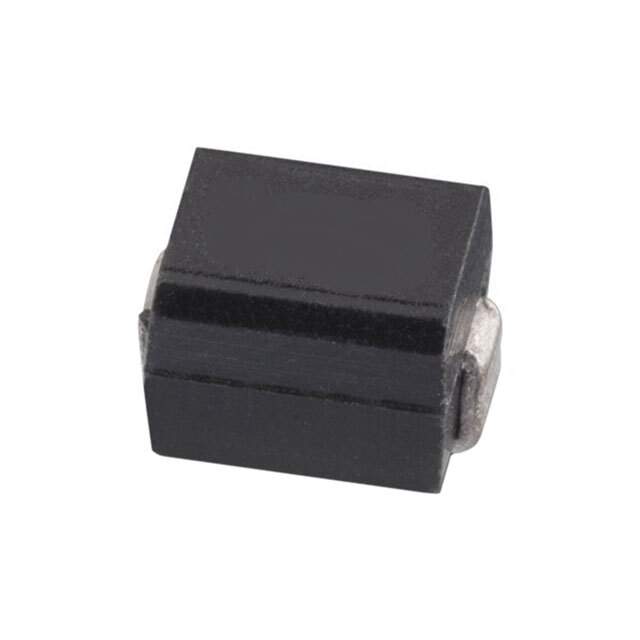

744764115 Real Image1 744764115 Real Image2
Same model may have multiple batches, images only for reference.
744764115 Real Image1 744764115 Real Image2
744764115 Real Image1 744764115 Real Image2
Same model may have multiple batches, images only for reference.

744764115

Part No 744764115
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 15UH 130MA 2.8 OHM SMD / 15 µH Unshielded Drum Core, Wirewound Inductor 130 mA 2.8Ohm Max 1210 (3225 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-GF
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±10%
Current Rating (Amps) 130 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 2.8Ohm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 31MHz
Ratings -
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 2.52 MHz
Features -
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.094" (2.40mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 1,000 pcs
Win Source Part Number 1381109-744764115
Ultra Librarian 3D Model Ultra Librarian 744764115 CAD Model

Description

The 1198245 is a drum core, wirewound inductor from the WE-GF series by Wurth Electronics Inc.

  • Mounting Type: Surface Mount
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.094" (2.40mm)
  • Inductance: 15 μH
  • Tolerance: ±10%
  • Operating Temperature: -40°C to 105°C
  • Core Material: Ferrite
  • Shielding: Unshielded
  • DC Resistance (DCR): 2.8 Ohm maximum
  • Current Rating: 130 mA
  • Package: Tape & Reel
  • Pieces per Package: 1,000
  • Q Value: 30 @ 2.52MHz
  • Self-Resonant Frequency: 31MHz
