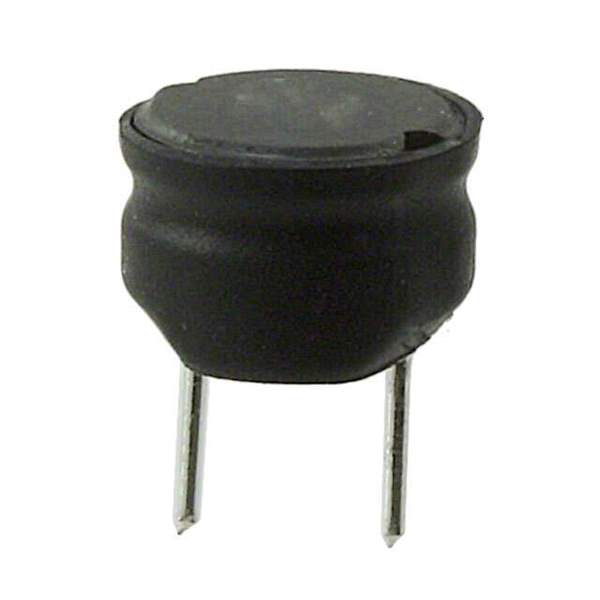

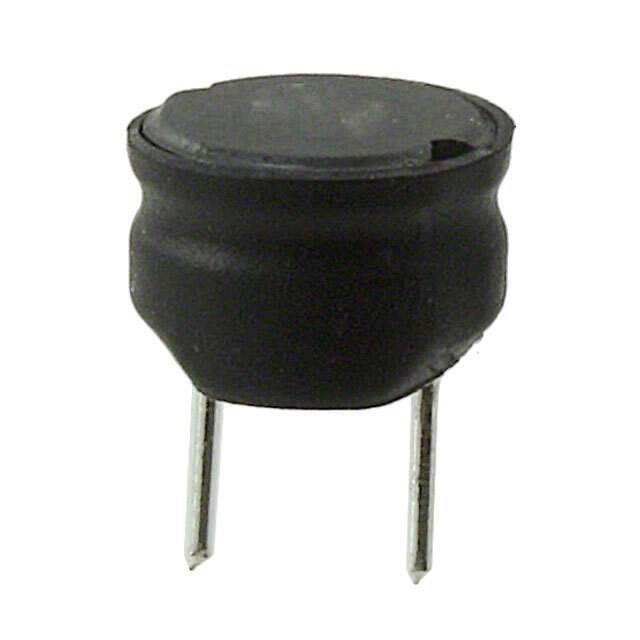

Same model may have multiple batches, images only for reference.

744741101

Name: 744741101
Brand: Wurth Electronics Inc
SKU: 547334
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744741101
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	WE-TI Radial Leaded Wire Wound Inductor \| FIXED IND 100UH 1.1A 1 OHM TH
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Wurth Electronics Inc.
Packaging	Tray
Type	Wirewound
Material - Core	Ferrite
Inductance	100μH
Tolerance	±10%
Current Rating (Amps)	1.1A
Current - Saturation	900mA
Shielding	Unshielded
DC Resistance (DCR)	1Ohm Max
Frequency - Self Resonant	9.4MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1kHz
Mounting Style	Through Hole
Manufacturer Package	Radial, Vertical Cylinder
Parts Dimension	0.335" Dia (8.50mm)
Height - Seated (Maximum)	0.236" (6.00mm)
Manufacturer Pack Quantity	140
MSL Level	1 (Unlimited)
Win Source Part Number	1130022-744741101
Manufacturer Homepage	www.we-online.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 744741101 CAD Model

Alternative Products

Description

The 744741101 is a wirewound inductor from Wurth Electronics Inc.

Component: 744741101
Type: Wirewound Inductor
Manufacturer: Wurth Electronics Inc.
Mounting: Through Hole
Shielding: Unshielded
Inductance: 100μH
Tolerance: ±10%
Material-Core: Ferrite
Current-Saturation: 900mA
Frequency-Self Resonant: 9.4MHz
Temperature Range: -40°C to 125°C
MSL Level: 1 (Unlimited)
Package: Radial, Vertical Cylinder
Height-Seated (Maximum): 0.236" (6.00mm)
Parts Dimension: 0.335" Dia (8.50mm)
Current Rating (Amps): 1.1A
Inductance Frequency-Test: 1kHz
Pack Quantity: 140
