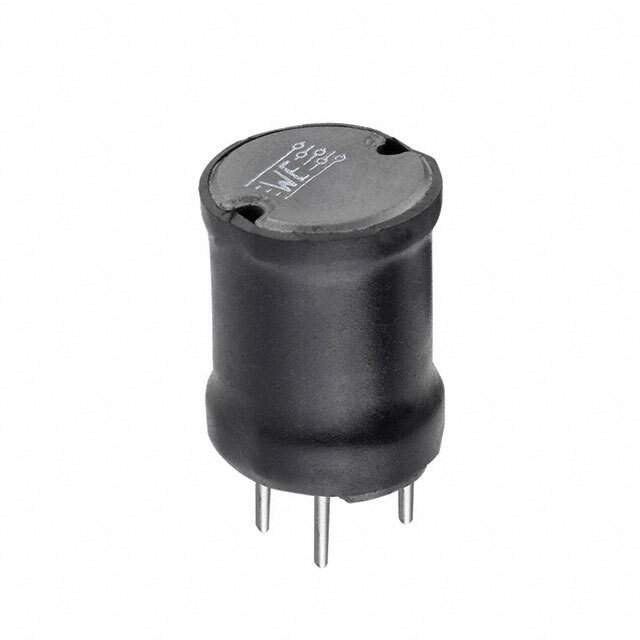

Same model may have multiple batches, images only for reference.

7447211331

Get a Quote

Part No	7447211331
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	330 µH ±10% Ferrite Radial Inductor; Max SRF: 2MHz; 1.2A Idc; 370mO Rdc WE-TIF
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Case / Package	Radial
Composition	Wirewound
Current Rating	1.2 A
DC Resistance (DCR)	370 mΩ
Height - Seated (Max)	15.0114 mm
Inductance	330 µH
Inductance Tolerance	10 %
Max Operating Temperature	125 °C
Min Operating Temperature	-40 °C
Mount	Through Hole
Packaging	Bulk
REACH SVHC	Unknown
RMS Current (Irms)	1.2 A
RoHS	Compliant
Saturation Current	1.55 A
Self Resonant Frequency	2 MHz
Shielding	Unshielded
Test Frequency	100 kHz
Tolerance	10 %
Win Source Part Number	1133071-7447211331
Categories	Fixed Inductors
Manufacturer	Wurth Electronics Inc
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 7447211331 CAD Model

Alternative Products

Description

The 7447211331 is a fixed inductor with an inductance of 330 μH and a current rating of 1.2 A from Wurth Electronics Inc.

Inductance: 330 μH
Current Rating: 1.2 A
DC Resistance: 370 mΩ
Tolerance: 10%
Self-Resonant Frequency: 2 MHz
Test Frequency: 100 kHz
Shielding: Unshielded
Case/Package: Radial
Height: 15.0114 mm
Operating Temperature: -40°C to 125°C
RMS Current (Irms): 1.2 A
Saturation Current: 1.55 A
Category: Fixed Inductors
Popularity: Medium
RoHS Compliant: Yes
REACH SVHC: Unknown
