Same model may have multiple batches, images only for reference.

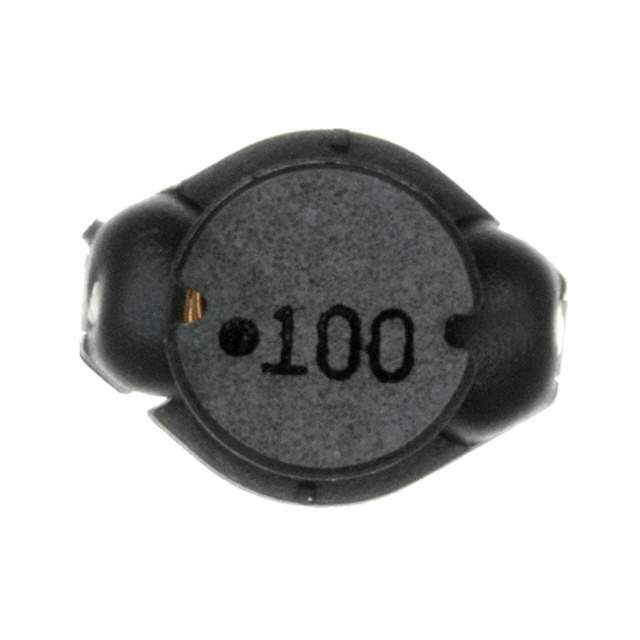

7445610 Real Image
Same model may have multiple batches, images only for reference.

7445610

Part No 7445610
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 10UH 3.3A 45 MOHM SMD
Datasheet
7445610 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD4
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 3.3 A
Current - Saturation (Isat) 5A
Shielding Unshielded
DC Resistance (DCR) 45mOhm Max
Frequency - Self Resonant 23MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max) 0.209" (5.30mm)
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857461-7445610
Ultra Librarian 3D Model Ultra Librarian 7445610 CAD Model

Description

The WE-PD4 series is a drum core, wirewound fixed inductor by Wurth Electronics Inc.

  • Packaging: Tape & reel
  • Design: Unshielded
  • Size: 0.500" L x 0.394" W (12.70mm x 10.00mm)
  • Seated Height: 0.209" (5.30mm)
  • Inductance: 10 µH (±20%)
  • DC Resistance: 45mOhm maximum
  • Current Rating: 3.3A
  • Saturation Current: 5A
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Applications: Electronic circuits requiring inductance
  • Core Material: Ferrite
