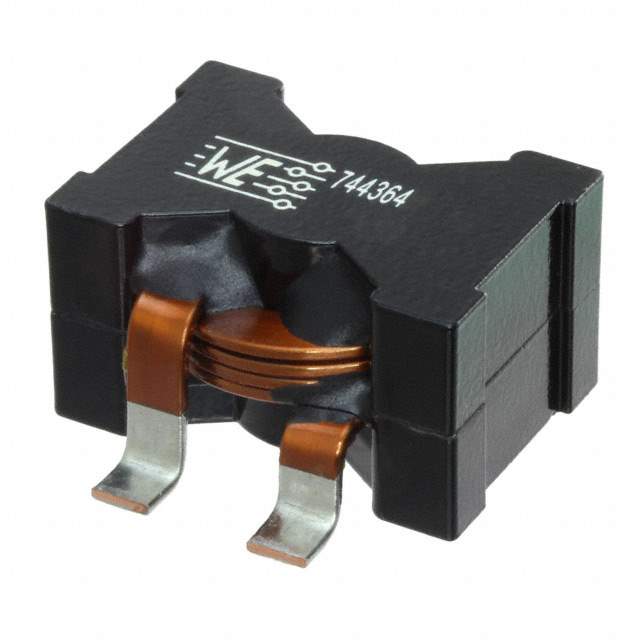

Same model may have multiple batches, images only for reference.

74436413300

Name: 74436413300
Brand: Wurth Electronics Inc
SKU: 1329271
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74436413300
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 33UH 36A 1.441MOHM SMD / 33 µH Shielded Drum Core, Wirewound Inductor 36 A 1.441mOhm Max Nonstandard
Datasheet	74436413300 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Tray
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	33 µH
Tolerance	±15%
Current Rating (Amps)	36 A
Current - Saturation (Isat)	6A
Shielding	Shielded
DC Resistance (DCR)	1.441mOhm Max
Frequency - Self Resonant	6.29MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	2815
Size / Dimension	1.102" L x 0.764" W (28.00mm x 19.40mm)
Height - Seated (Max)	0.606" (15.40mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-11536
Standard Package	20
Win Source Part Number	1329271-74436413300
Ultra Librarian 3D Model	Ultra Librarian 74436413300 CAD Model

Alternative Products

Description

The 1329271-74436413300 is a shielded fixed inductor with a drum core and wirewound type from Würth Elektronik.

Size: 1.102" L x 0.764" W (28.00mm x 19.40mm)
Inductance: 33 µH
Tolerance: ±15%
Material Core: Manganese Zinc Ferrite (MnZn)
DC Resistance (DCR): 1.441mOhm Max
Current Rating: 36 A
Frequency Self-Resonant: 6.29MHz
Mounting Type: Surface Mount
Temperature Range: -40°C ~ 125°C
Standard Package: 20
