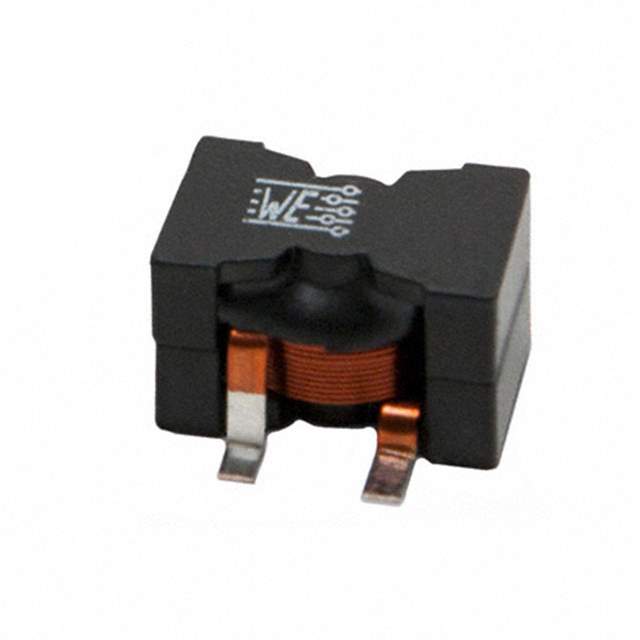

Same model may have multiple batches, images only for reference.

7443630310

Name: 7443630310
Brand: Wurth Electronics Inc
SKU: 547296
Availability: InStock
Rating: 4.84 (49 reviews)

Get a Quote

Part No	7443630310
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	POWER-CHOKE WE-HCF 2013 \| FIXED IND 3.1UH 26A 2.09 MOHM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Wurth Electronics Inc.
Packaging	Reel
Type	Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	3.1μH
Tolerance	±15%
Current Rating (Amps)	26A
Current - Saturation	45A
Shielding	Shielded
DC Resistance (DCR)	2.09mOhm
Frequency - Self Resonant	29MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Parts Dimension	0.846" L x 0.827" W (21.50mm x 21.00mm)
Height - Seated (Maximum)	0.551" (14.00mm)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1129984-7443630310
Manufacturer Homepage	www.we-online.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 7443630310 CAD Model

Alternative Products

Description

The 7443630310 is a shielded wirewound inductor manufactured by Wurth Electronics Inc.

Inductance: 3.1μH
Tolerance: ±15%
Mounting Type: Surface Mount
Material: Manganese Zinc Ferrite (MnZn)
DC Resistance (DCR): 2.09mOhm
Current Rating: 26A
Maximum Current Saturation: 45A
Operating Temperature Range: -40°C to 125°C
Package Type: Nonstandard
Package: Reel
