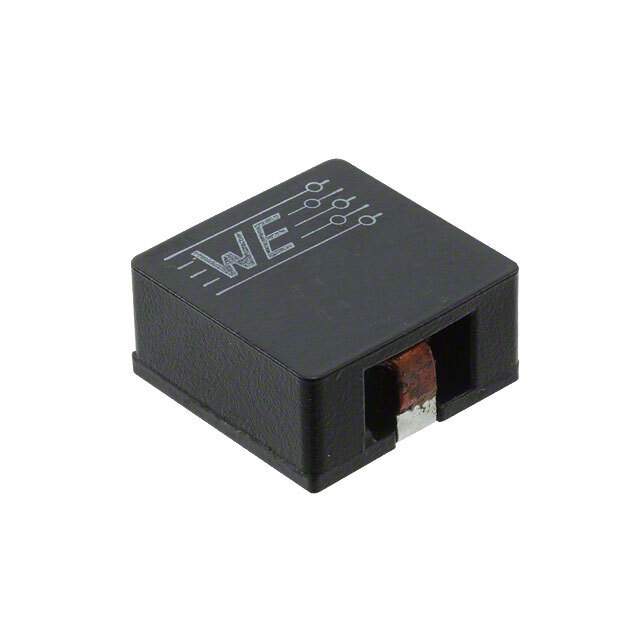

Same model may have multiple batches, images only for reference.

7443557560

Name: 7443557560
Brand: Wurth Electronics Inc
SKU: 857372
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	7443557560
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 5.6UH 25A 2.82MOHM SMD
Datasheet	7443557560 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-HCI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Metal Composite
Inductance	5.6 µH
Tolerance	±20%
Current Rating (Amps)	25 A
Current - Saturation (Isat)	27A
Shielding	Shielded
DC Resistance (DCR)	2.82mOhm
Frequency - Self Resonant	26MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	1890
Size / Dimension	0.720" L x 0.717" W (18.30mm x 18.20mm)
Height - Seated (Max)	0.362" (9.20mm)
Standard Package	150 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857372-7443557560
Ultra Librarian 3D Model	Ultra Librarian 7443557560 CAD Model

Alternative Products

Description

The WE-HCI series from Wurth Electronics Inc is a fixed inductor designed for applications requiring high inductance values.

Package: Tape & Reel
Size: 0.720" L x 0.717" W (18.30mm x 18.20mm)
Seated Height: 0.362" (9.20mm)
Inductance: 5.6 µH ±20%
DC Resistance (DCR): 2.82mOhm
Current Rating: 25A
Operating Temperature: -40°C to 125°C
Core: Metal Composite
