Same model may have multiple batches, images only for reference.

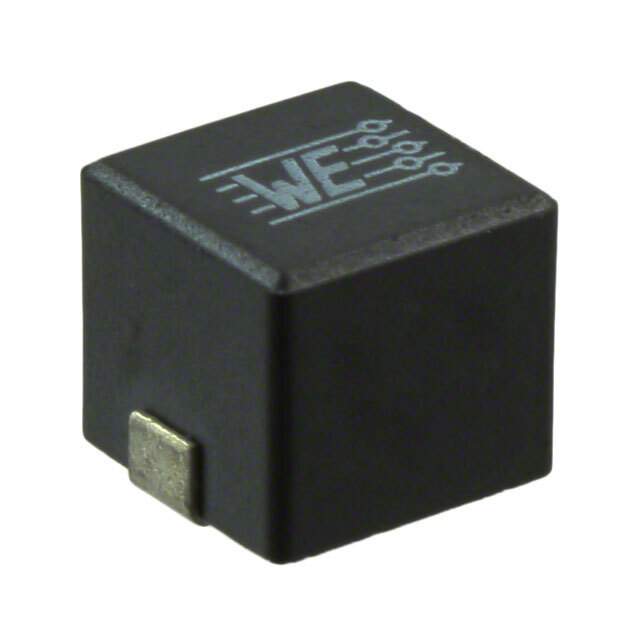

7443340220 Real Image
Same model may have multiple batches, images only for reference.

7443340220

Part No 7443340220
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 16.5A 5.6MOHM SM
Datasheet
7443340220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 16.5 A
Current - Saturation (Isat) 12.5A
Shielding Shielded
DC Resistance (DCR) 5.6mOhm Max
Frequency - Self Resonant 97MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.331" L x 0.311" W (8.40mm x 7.90mm)
Height - Seated (Max) 0.295" (7.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857358-7443340220
Ultra Librarian 3D Model Ultra Librarian 7443340220 CAD Model

Description

The WE-HCC series from Wurth Electronics Inc is a drum core, wirewound inductor with a shielded package.

  • Size: 0.331" L x 0.311" W (8.40mm x 7.90mm)
  • Inductance: 2.2 µH
  • Maximum Seated Height: 0.295" (7.50mm)
  • DC Resistance (DCR): 5.6mOhm Max
  • Current Rating: 16.5 A
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
