Same model may have multiple batches, images only for reference.

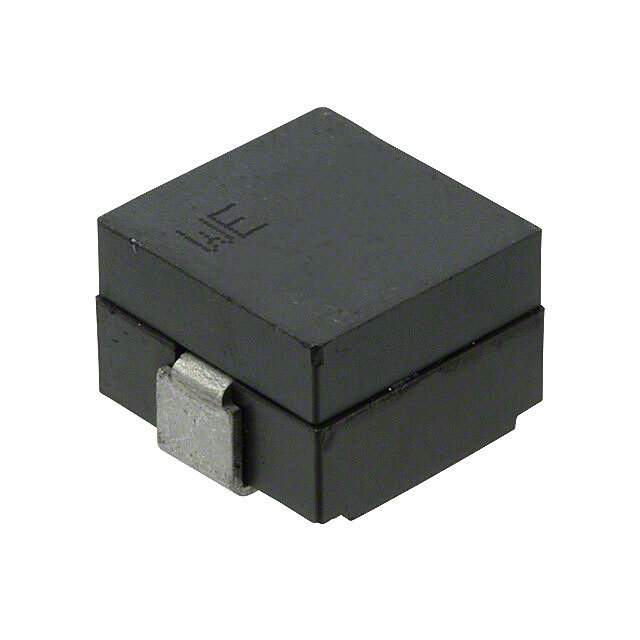

744309025 Real Image
Same model may have multiple batches, images only for reference.

744309025

Part No 744309025
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 250NH 47.5A 0.165 MOHM
Datasheet
744309025 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-HCM
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 250 nH
Tolerance ±20%
Current Rating (Amps) 47.5 A
Current - Saturation (Isat) 81A
Shielding Shielded
DC Resistance (DCR) 0.165mOhm
Frequency - Self Resonant 300MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.551" L x 0.512" W (14.00mm x 13.00mm)
Height - Seated (Max) 0.374" (9.50mm)
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857327-744309025
Ultra Librarian 3D Model Ultra Librarian 744309025 CAD Model

Description

The WE-HCM series is a line of fixed inductors designed for use in electronic components. Wurth Electronics Inc manufactures it.

  • Type: Drum core, wirewound
  • Package: Tape and reel
  • Shielded: Yes
  • Size: 0.551" L x 0.512" W (14.00mm x 13.00mm)
  • Height: 0.374" (9.50mm) (Maximum)
  • Inductance: 250nH ±20%
  • DC Resistance: 0.165mOhm
  • Current Rating: 47.5A
  • Operating Temperature: -40°C to 125°C
  • Core Material: Manganese zinc ferrite (MnZn)
  • Mounting Type: Surface Mount
  • Package Quantity: 300 pcs
