Same model may have multiple batches, images only for reference.

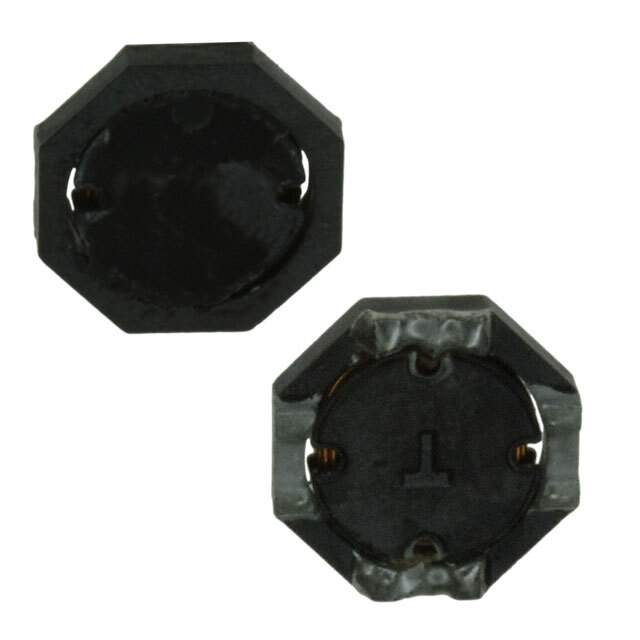

7440700047 Real Image
Same model may have multiple batches, images only for reference.

7440700047

Part No 7440700047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-TPC | FIXED IND 4.7UH 3A 45 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating (Amps) 3A
Current - Saturation 2.2A
Shielding Shielded
DC Resistance (DCR) 45mOhm Max
Frequency - Self Resonant 65MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129896-7440700047
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 7440700047 CAD Model

Description

The Wurth Electronics Inc. 4.7μH wirewound inductor is a shielded component with a ferrite core material.

  • Manufacturer: Wurth Electronics Inc.
  • Product Name: 4.7μH
  • Type: Wirewound inductor
  • Shielding: Shielded
  • Core Material: Ferrite
  • Saturation Current: 2.2A
  • Self-Resonant Frequency: 65MHz
  • DC Resistance: 45mOhm max
  • Tolerance: ±30%
  • Operating Temperature: -40°C to 125°C
  • Package: Nonstandard
  • Height: 0.079" (2.00mm)
  • Ideal For: Inductors, coils, and chokes
