Same model may have multiple batches, images only for reference.

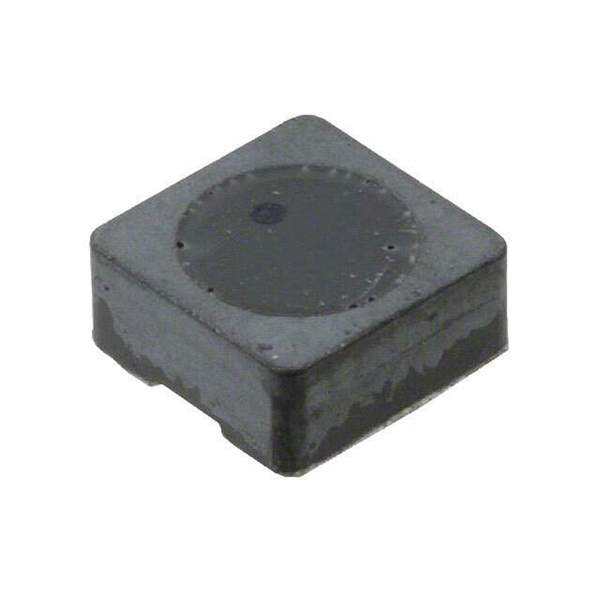

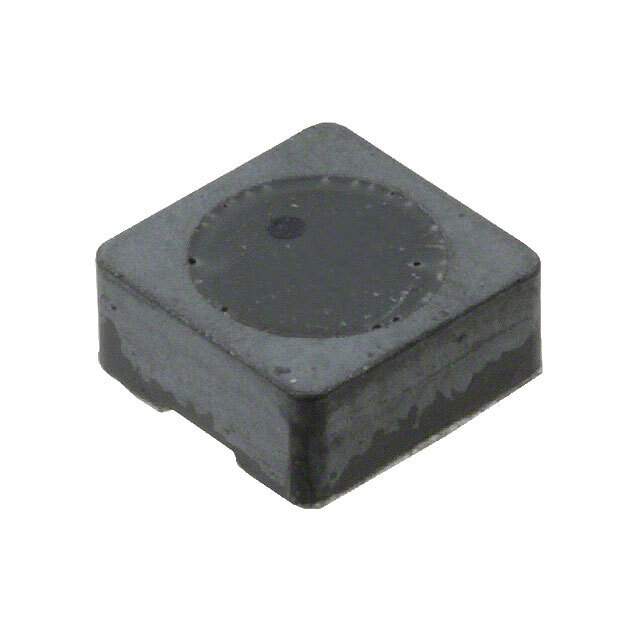

744053270 Real Image
Same model may have multiple batches, images only for reference.

744053270

Part No 744053270
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 27UH 1.05A 160MOHM SMD / 27 µH Shielded Drum Core, Wirewound Inductor 1.05 A 160mOhm Max 2323 (5858 Metric)
Datasheet
744053270 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 27 µH
Tolerance ±30%
Current Rating (Amps) 1.05 A
Current - Saturation (Isat) 800mA
Shielding Shielded
DC Resistance (DCR) 160mOhm Max
Frequency - Self Resonant 15MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 2323 (5858 Metric)
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.118" (3.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-1048-6,732-1048-1,732-1048-2
Standard Package 400
Win Source Part Number 1328954-744053270
Ultra Librarian 3D Model Ultra Librarian 744053270 CAD Model

Description

The Würth Elektronik 1328954-744053270 is a fixed inductor that belongs to the Inductors, Coils, Chokes category.

  • Manufacturer: Würth Elektronik
  • Type: Drum Core, Wirewound
  • Shielded: Yes
  • Size / Dimension: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Inductance: 27 µH
  • Height: 0.118" (3.00mm) Max
  • Mounting: Surface Mount
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Frequency Self-Resonant: 15MHz
  • DC Resistance (DCR): 160mOhm Max
  • Operating Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • Current Rating: 1.05 A
  • Inductance Frequency - Test: 100 kHz
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.50.4000
  • Other Part Numbers: 732-1048-6,732-1048-1,732-1048-2
  • Current Saturation (Isat): 800mA
  • ROHS3 Compliant: Yes
