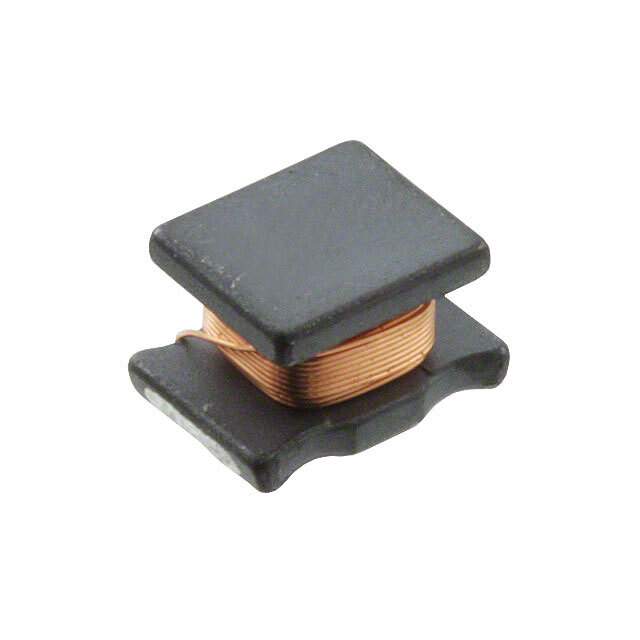

744045006 Real Image1 744045006 Real Image2
Same model may have multiple batches, images only for reference.
744045006 Real Image1 744045006 Real Image2
744045006 Real Image1 744045006 Real Image2
Same model may have multiple batches, images only for reference.

744045006

Part No 744045006
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 6.8UH 1.1A 200MOHM SMD / 6.8 µH Unshielded Drum Core, Wirewound Inductor 1.1 A 200mOhm Max 1812 (4532 Metric)
Datasheet
744045006 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LQ
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.6A
Shielding Unshielded
DC Resistance (DCR) 200mOhm Max
Q @ Freq 36 @ 1MHz
Frequency - Self Resonant 37MHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.114" (2.90mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 500 pcs
Win Source Part Number 1381098-744045006
Ultra Librarian 3D Model Ultra Librarian 744045006 CAD Model

Description

The WE-LQ series inductors from Wurth Electronics Inc are high-quality fixed inductors designed for various electronic applications.

  • Inductor Type: Drum Core, Wirewound
  • Shielding: Unshielded
  • Packaging: Tape & Reel
  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Inductance: 6.8 µH
  • Tolerance: ±20%
  • Maximum Seated Height: 0.114" (2.90mm)
  • DC Resistance (DCR): 200mOhm max
  • Current Rating: 1.1 A
  • Saturation Current (Isat): 1.6A
  • Operating Temperature: -40°C to 125°C
