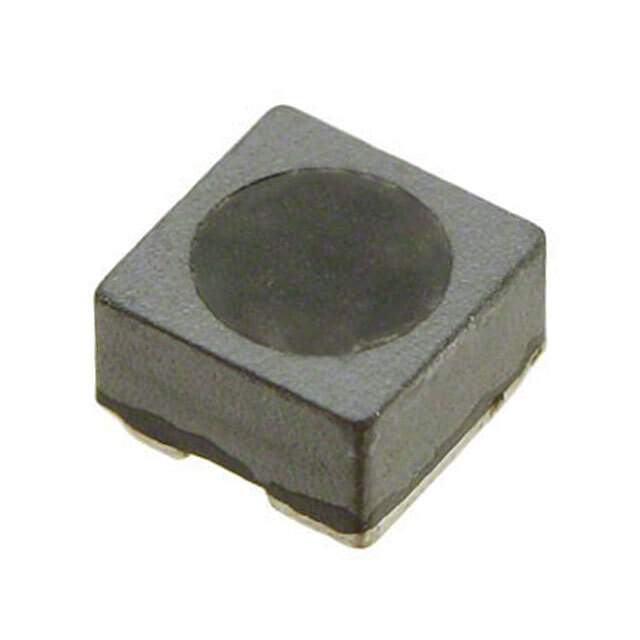

744043100

Part No 744043100
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-TPC | FIXED IND 10UH 1.19A 110 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±30%
Current Rating (Amps) 1.19A
Current - Saturation 1A
Shielding Shielded
DC Resistance (DCR) 110mOhm Max
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package 1919 (4848 Metric)
Parts Dimension 0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1129872-744043100
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 744043100 CAD Model

Description

The Wurth Electronics Inc. 1129872-744043100 is a wirewound type shielded inductor with a mounting style of SMD.

  • Mounting Style: SMD
  • Inductance: 10μH
  • Tolerance: ±30%
  • Core Material: Ferrite
  • DC Resistance: 110mOhm (Maximum)
  • Current Rating: 1.19A
  • Saturation Current: 1A
  • Self-Resonance Frequency: 40MHz
  • Operating Temperature: -40°C to 125°C
  • Package Type: 1919 (4848 Metric)
  • Height: 0.118" (3.00mm)
  • Category: Inductors, Coils, Chokes
