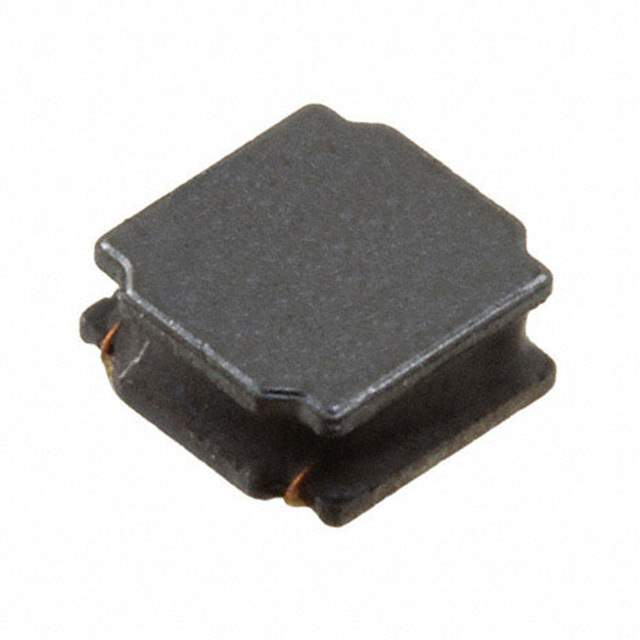

Same model may have multiple batches, images only for reference.

74404042010

Name: 74404042010
Brand: Wurth Electronics Inc
SKU: 1327595
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74404042010
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 1UH 3.2A 27 MOHM SMD / 1 µH Semi-Shielded Drum Core, Wirewound Inductor 3.2 A 27mOhm Nonstandard
Datasheet	74404042010 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1 µH
Tolerance	±30%
Current Rating (Amps)	3.2 A
Current - Saturation (Isat)	4.8A
Shielding	Semi-Shielded
DC Resistance (DCR)	27mOhm
Frequency - Self Resonant	120MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	4018
Size / Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.071" (1.80mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-5502-2,732-5502-1,732-5502-6
Standard Package	3,000
Win Source Part Number	1327595-74404042010
Ultra Librarian 3D Model	Ultra Librarian 74404042010 CAD Model

Alternative Products

Description

The 1327595-74404042010 is a fixed inductor from Würth Elektronik.

Type: Drum core, wirewound
Shielding: Semi-shielded
Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
Inductance: 1μH
Standard Package: 3,000
Mounting: Surface mount
Tolerance: ±30%
Rating: AEC-Q200
Core Material: Ferrite
DC Resistance (DCR): 27mOhm
Supplier Device Package: 4018
Operating Temperature Range: -40°C to 125°C
Current Rating: 3.2A
Inductance Frequency Test: 100kHz
ECCN: EAR99 compliant
Compliance: ROHS3 compliant
