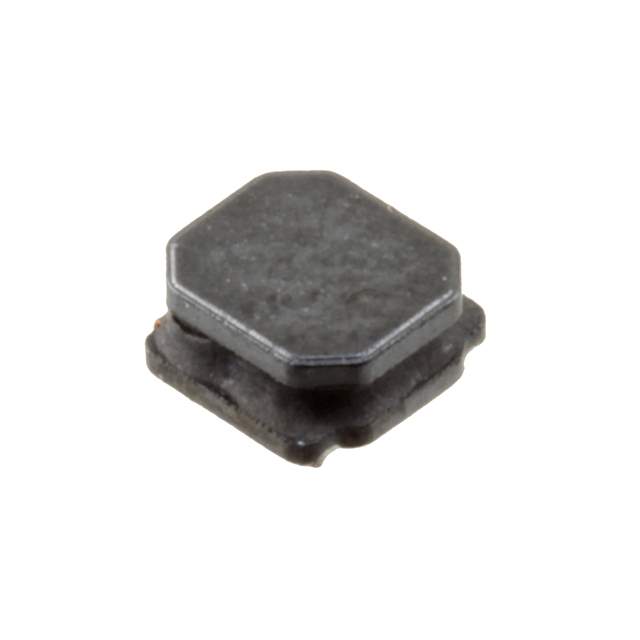

74404032033 Real Image
Same model may have multiple batches, images only for reference.

74404032033

Part No 74404032033
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.5A 70 MOHM SMD
Datasheet
74404032033 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LQS
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 1.5 A
Current - Saturation (Isat) 1.5A
Shielding Semi-Shielded
DC Resistance (DCR) 70mOhm
Frequency - Self Resonant 72MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 3015
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857218-74404032033
Ultra Librarian 3D Model Ultra Librarian 74404032033 CAD Model

Description

The 857218-74404032033 is a fixed inductor from the WE-LQS series by Wurth Electronics Inc.

  • Design: Drum Core, Wirewound
  • Shielded: Semi-Shielded
  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Inductance: 3.3 μH
  • Maximum Seated Height: 0.059" (1.50mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 70mOhm
  • AEC-Q200: Yes
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 1.5 A
  • Saturation Current (Isat): 1.5A
  • Mounting: Surface Mount
  • Package: Nonstandard
