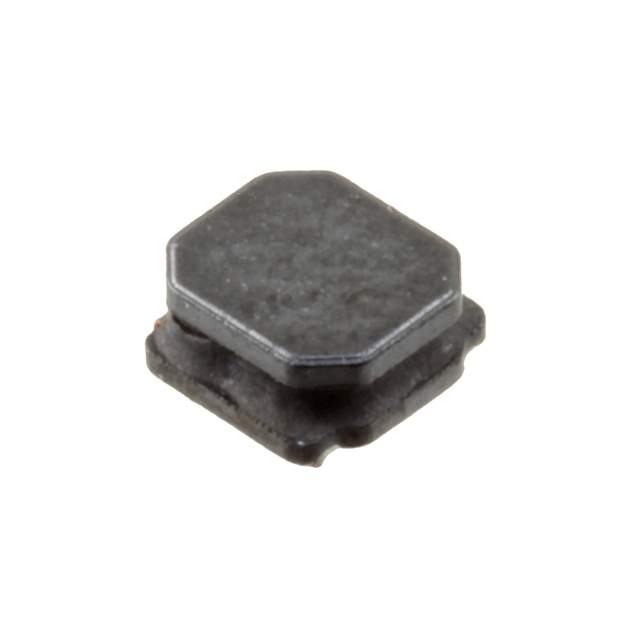

74404032010

Name: 74404032010
Brand: Wurth Electronics Inc
SKU: 1329604
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74404032010
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 1UH 2.2A 33 MOHM SMD / 1 µH Semi-Shielded Drum Core, Wirewound Inductor 2.2 A 33mOhm Nonstandard
Datasheet	74404032010 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	2.2 A
Current - Saturation (Isat)	3A
Shielding	Semi-Shielded
DC Resistance (DCR)	33mOhm
Frequency - Self Resonant	138MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	3015
Size / Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.059" (1.50mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-5491-6,732-5491-1,732-5491-2
Standard Package	2,000
Win Source Part Number	1329604-74404032010
Ultra Librarian 3D Model	Ultra Librarian 74404032010 CAD Model

Alternative Products

Description

The 74404032010 is a fixed inductor that is used for inductors, coils, and chokes from Würth Elektronik.

Packaging: Reel-TR
Size/Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
Inductance: 1µH
Height-Seated (Max): 0.059" (1.50mm)
Tolerance: ±20%
Current Rating (Amps): 2.2A
Material-Core: Ferrite
Frequency-Self Resonant: 138MHz
DC Resistance (DCR): 33mOhm
Supplier Device Package: 3015
Temperature Range-Operating: -40°C to 125°C
