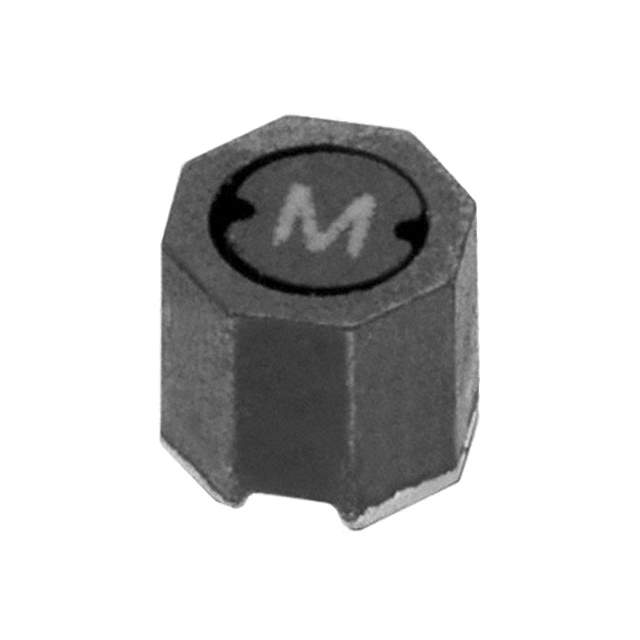

744025150 Real Image
Same model may have multiple batches, images only for reference.

744025150

Part No 744025150
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 15UH 720MA 400MOHM SMD
Datasheet
744025150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 720 mA
Current - Saturation (Isat) 900mA
Shielding Shielded
DC Resistance (DCR) 400mOhm Max
Frequency - Self Resonant 32MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2828
Size / Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 550 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857199-744025150
Ultra Librarian 3D Model Ultra Librarian 744025150 CAD Model

Description

The WE-TPC series is a drum core, wirewound inductor designed for use in electronic applications that require high performance and reliability.

  • Size: 0.110" L x 0.110" W (2.80mm x 2.80mm)
  • Maximum Seated Height: 0.118" (3.00mm)
  • Inductance: 15 µH
  • DC Resistance (DCR): 400mOhm max
  • Shielded: Yes
  • Package: Tape & Reel
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 720 mA
  • Saturation Current: 900mA
  • Product Status: Active
  • Manufacturer: Wurth Electronics Inc
