Same model may have multiple batches, images only for reference.

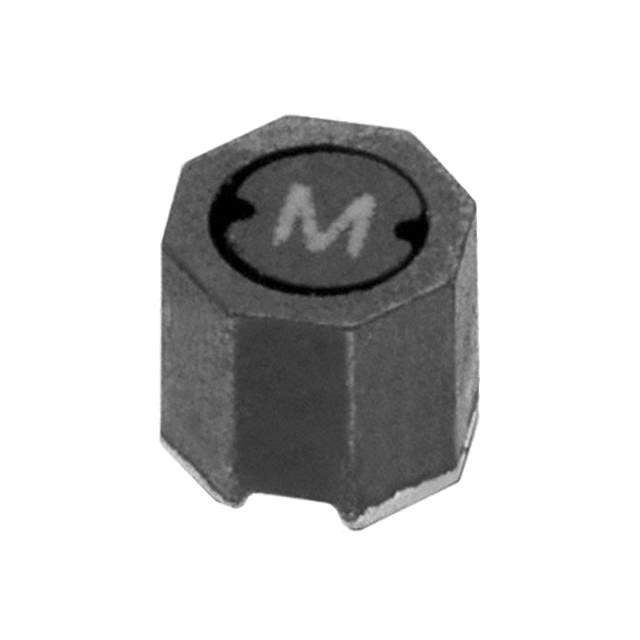

744025002 Real Image
Same model may have multiple batches, images only for reference.

744025002

Part No 744025002
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.8A 66 MOHM SMD
Datasheet
744025002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 1.8 A
Current - Saturation (Isat) 2.4A
Shielding Shielded
DC Resistance (DCR) 66mOhm Max
Frequency - Self Resonant 130MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2828
Size / Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 550 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 845051-744025002
Ultra Librarian 3D Model Ultra Librarian 744025002 CAD Model

Description

The WE-TPC series is a range of drum core, wirewound inductors designed for use in various electronic applications.

  • Series: WE-TPC
  • Core Type: Drum Core, Wirewound
  • Size: 0.110" L x 0.110" W (2.80mm x 2.80mm)
  • Inductance: 2.2 µH
  • DC Resistance (DCR): 66mOhm
  • Shielding: Shielded
  • Mounting: Surface Mount
  • Package: Nonstandard
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 1.8 A
  • RoHS Compliant: Yes
  • Manufacturer: Wurth Electronics Inc
