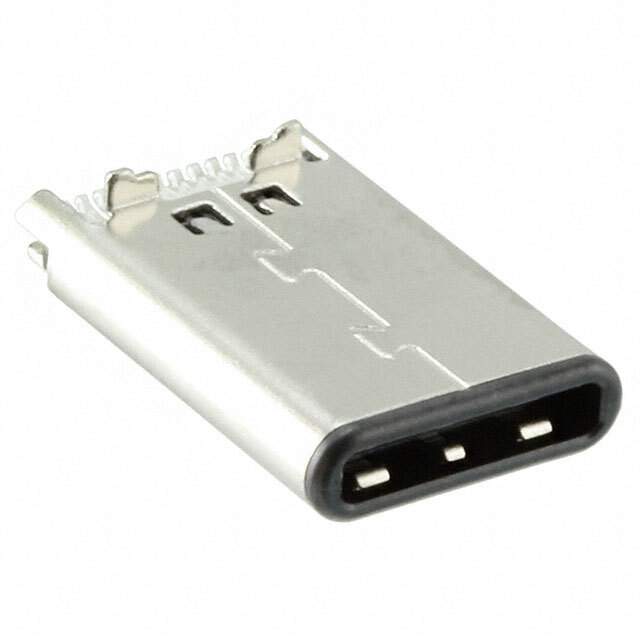

632712000011 Real Image
Same model may have multiple batches, images only for reference.

632712000011

Part No 632712000011
Manufacturer Wurth Electronics Inc
Catalog USB, DVI, HDMI Connectors
Description CONN PLUG USB3.1 TYPEC 24POS SMD
Datasheet
632712000011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Wurth Electronics Inc
Series WR-COM
Package Tape & Reel
Product Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Plug
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type Board Edge, Straddle Mount
Mounting Feature Horizontal
Termination Solder
Features Cover
Temperature Range - Operating -25°C ~ 105°C
Number of Ports 1
Current Rating (Amps) 5A
Voltage - Rated 20VDC
Mating Cycles 10000
Shielding Unshielded
Contact Finish Gold
Shell/Shielding Material Steel
Material Flammability Rating UL94 V-0
Insulation Color Black
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848445-632712000011
Ultra Librarian 3D Model Ultra Librarian 632712000011 CAD Model

Description

The WR-COM series USB-C (USB TYPE-C) connector assembly with a cover is a versatile electronic component designed for efficient data transfer.

  • Series: WR-COM
  • Connector Type: USB-C (USB TYPE-C)
  • Termination: solder
  • Contact Finish: gold
  • USB Specification: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed +)
  • Shielding: unshielded
  • Material Flammability Rating: UL94 V-0
  • Rated Voltage: 20VDC
  • Current Rating: 5A
  • Mounting Orientation: horizontal
  • Mounting Configurations: board edge and straddle mount
