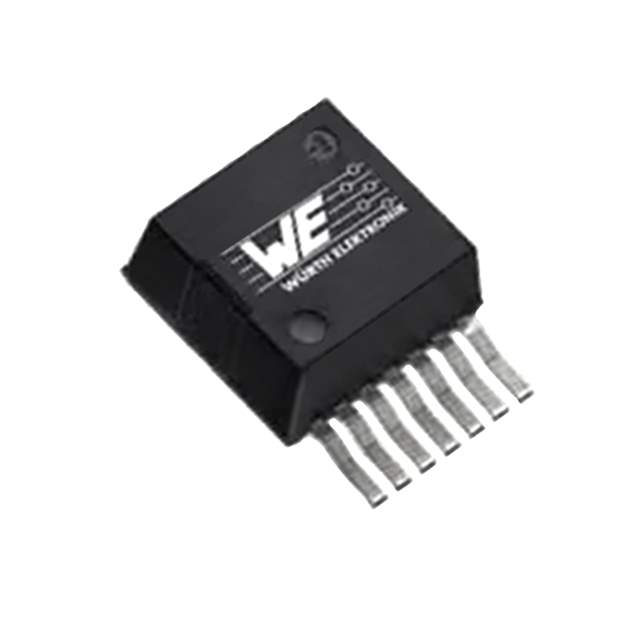

Same model may have multiple batches, images only for reference.

171012401

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	171012401
Manufacturer	Wurth Electronics Inc
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5-24V / Non-Isolated PoL Module DC DC Converter 1 Output 5 ~ 24V 1A 6V - 42V Input
Datasheet	171012401 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Würth Elektronik
Series	MagI³C, VDRM
Package	Tape & Reel
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	6V
Voltage - Input (Max)	42V
Voltage - Output 1	5 ~ 24V
Current - Output (Max)	1A
Applications	ITE (Commercial)
Features	SCP, UVLO
Temperature Range - Operating	-40°C ~ 125°C
Efficiency	94%
Mounting Type	Surface Mount
Package / Case	7-SMD Module
Size / Dimension	0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm)
Control Features	Enable, Active High
Standard Package	250
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1338963-171012401
Ultra Librarian 3D Model	Ultra Librarian 171012401 CAD Model

Alternative Products

Description

The 171012401 is a non-isolated PoL module that is a part of the MagI³C, VDRM series.

Package Type: Tape & Reel
Standard Package: 250
Dimensions: 0.40 inches (L), 0.39 inches (W), 0.18 inches (H)
Application: ITE (Commercial)
Control Features: Enable, Active High
Outputs: One
Current-Output (Max): 1A
Voltage-Input (Min): 6V
Voltage-Input (Max): 42V
Voltage-Output 1: 5 ~ 24V
Efficiency: 94%
Mounting Type: Surface Mount
Package/Case: 7-SMD Module
Operating Temperature: -40°C to 125°C
