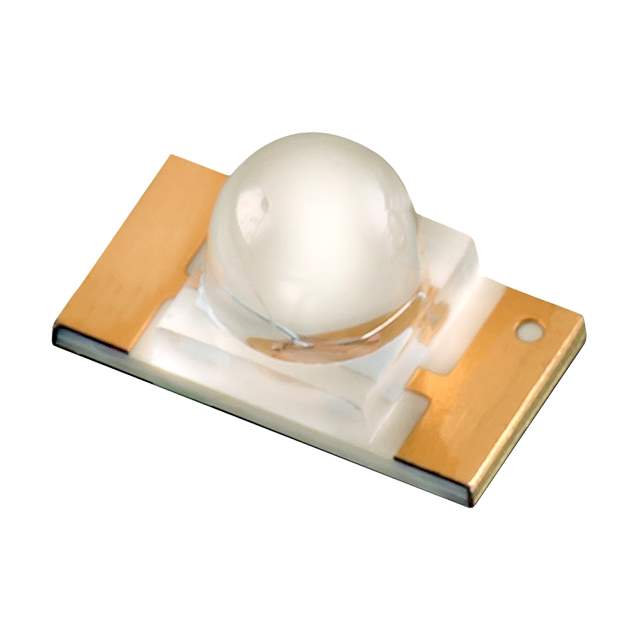

156120RS82500 Real Image
Same model may have multiple batches, images only for reference.

156120RS82500

Part No 156120RS82500
Manufacturer Wurth Electronics Inc
Catalog LED Indication - Discrete
Description LED RED CLEAR 2SMD BOTTOM ENTRY / Red 624nm LED Indication - Discrete 2V 1206 (3216 Metric)
Datasheet
156120RS82500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Würth Elektronik
Series WL-SMRW
Package Tape & Reel
Color Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1100mcd
Lens Style Round with Domed Top
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 20°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 624nm
Wavelength - Peak 632nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 2-SMD
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.95mm
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 732-11422-1,732-11422-2,732-11422-6
Standard Package 2,000
Win Source Part Number 1187121-156120RS82500
Ultra Librarian 3D Model Ultra Librarian 156120RS82500 CAD Model

Description

The WL-SMRW series of optoelectronic components from Würth Elektronik is a red LED indication discrete product.

  • Lens Color: Clear Colorless
  • Lens Style: Round Domed Top
  • Viewing Angle: 20°
  • Height: 1.95mm
  • Dimensions: 3.20mm L x 1.60mm W
  • Configuration: Independent
  • Millicandela Rating: 1100mcd
  • Voltage-Forward (Vf) (Typ): 2V @ 20mA
  • Current-Test: 20mA
  • Wavelength-Dominant: 624nm
  • Wavelength-Peak: 632nm
  • Mounting Type: Surface Mount, Bottom Entry
  • Package/Case: 1206 (3216 Metric)
  • Supplier Device Package: 2-SMD
  • REACH: Unaffected
  • ECCN: EAR99
