Same model may have multiple batches, images only for reference.

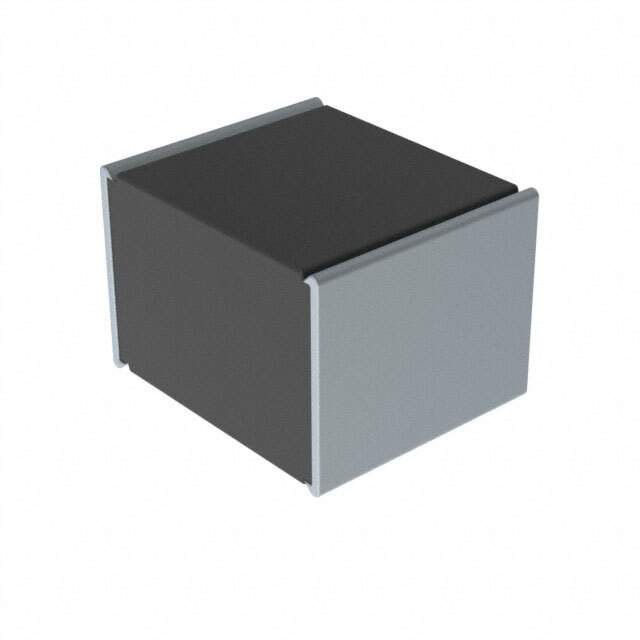

SMDTF03220TB00KQ00 Real Image
Same model may have multiple batches, images only for reference.

SMDTF03220TB00KQ00

Part No SMDTF03220TB00KQ00
Manufacturer WIMA
Catalog Film Capacitors
Description CAP FILM 0.22UF 10% 250VDC 2824 / 0.22 µF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized 2824 (7260 Metric)
Datasheet
SMDTF03220TB00KQ00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr WIMA
Package Tape & Reel
Capacitance 0.22 µF
Tolerance ±10%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polyester, Polyethylene Terephthalate (PET) , Metallized
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Surface Mount
Package / Case 2824 (7260 Metric)
Size / Dimension 0.283" L x 0.240" W (7.20mm x 6.10mm)
Height - Seated (Max) 0.209" (5.30mm)
Termination Solder Pads
Applications General Purpose
Standard Package 750
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0045
Win Source Part Number 1340740-SMDTF03220TB00KQ00
Ultra Librarian 3D Model Ultra Librarian SMDTF03220TB00KQ00 CAD Model

Description

This is a film capacitor that belongs to the category of capacitors.

  • Part Number: 1340740-SMDTF03220TB00KQ00
  • Voltage Rating (AC): 160V
  • Voltage Rating (DC): 250V
  • Size / Dimension: 0.283 inches (L) x 0.240 inches (W)
  • Termination: Solder Pads
  • Mounting Type: Surface Mount
  • Capacitance: 0.22 microfarads
  • Tolerance: ±10%
  • Dielectric Material: Polyester, Polyethylene Terephthalate (PET) Metallized
  • Application: General Purpose
  • Height - Seated (Max): 0.209 inches (5.30mm)
  • Standard Package: 750
  • Operating Temperature: -55°C to 100°C
  • REACH: Unaffected
  • ECCN: EAR99
