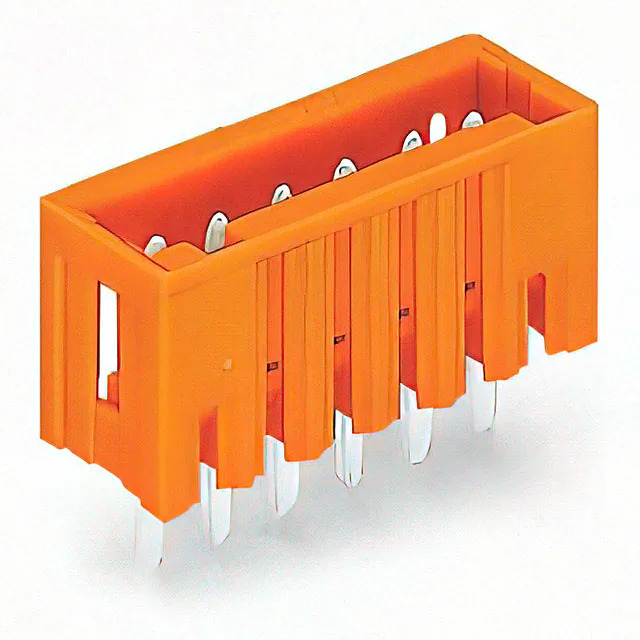

Same model may have multiple batches, images only for reference.

734-232

Name: 734-232
Brand: WAGO Corporation
SKU: 1364616
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	734-232
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	THT MALE HEADER; 1.0 X 1.0 MM SO / 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMINI
Package	Box
Product Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.150" (3.81mm)
Header Orientation	Vertical
Plug Wire Entry	-
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	10A
Voltage - IEC	320 V
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	-
Wire Gauge or Range - mm²	-
Color	Orange
Temperature Range - Operating	-60°C ~ 100°C
Contact Mating Finish	Tin
Features	-
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	-
Contact Material	Electrolytic Copper
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	0.177" (4.50mm)
Insulation Height	0.406" (10.31mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364616-734-232
Ultra Librarian 3D Model	Ultra Librarian 734-232 CAD Model

Description

The 734-232 is a shrouded header with male pins terminal block from WAGO Corporation's MCSMINI series.

Mounting: Through-Hole
Package: Box
Material: Polyamide (PA66) and Nylon 6/6
Color: Orange
Positions: 2
Wire Gauge: 18-24 AWG
Current Rating (IEC): 10A
Current Rating (UL): 10A
Voltage Rating (UL): 300V
Configuration: Vertical
Flammability Rating: UL94 V-0
