Same model may have multiple batches, images only for reference.

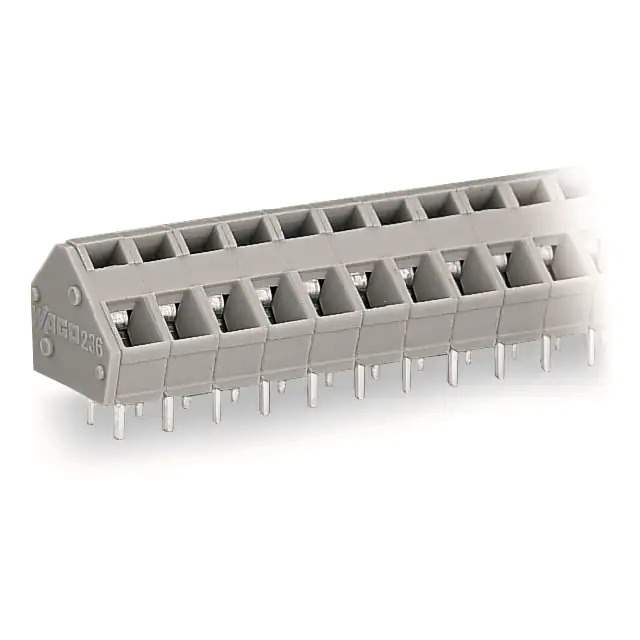

236-402/000-009/999-950 Real Image
Same model may have multiple batches, images only for reference.

236-402/000-009/999-950

Part No 236-402/000-009/999-950
Manufacturer WAGO Corporation
Catalog Terminal Blocks
Description PCB TERMINAL BLOCK; 2.5 MM; PIN / 2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.200" (5.08mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr WAGO Corporation
Package Box
Number of Levels 1
Positions Per Level 2
Pitch 0.200" (5.08mm)
Mating Orientation 45° (135°) Angle with Board
Current 15 A
Voltage 300 V
Wire Gauge 12-28 AWG
Mounting Type Through Hole
Wire Termination Screwless - Spring Cage, Tension Clamp
Color Gray
Temperature Range - Operating -60°C ~ 105°C
Housing Material Polyamide (PA66) , Nylon 6/6
Contact Material - Plating Electrolytic Copper - Tin Plated
Clamp Material - Plating Steel - Nickel Plated
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1351621-236-402/000-009/999-950
Ultra Librarian 3D Model Ultra Librarian 236-402/000-009/999-950 CAD Model

Description

The 236-402/000-009/999-950 is a product of WAGO Corporation, and its Win Source Part Number is 1351621-236-402/000-009/999-950.

  • Category: Connectors, Interconnects - Terminal Blocks - Wire to Board
  • Positions Per Level: 2
  • Number of Levels: 1
  • Pitch: 0.200" (5.08mm)
  • Color: Gray
  • Package: Box
  • Wire Gauge: 12-28 AWG
  • Housing Material: Polyamide (PA66) , Nylon 6/6
  • Voltage: 300 V
  • Standard Package: 1
  • Current: 15 A
  • Mating Orientation: 45° (135°) Angle with Board
  • Wire Termination: Screwless - Spring Cage, Tension Clamp
  • Contact Material-Plating: Electrolytic Copper - Tin Plated
  • Clamp Material-Plating: Steel - Nickel Plated
  • Mounting Type: Through Hole
  • Temperature Range: -60°C ~ 105°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.90.4000
