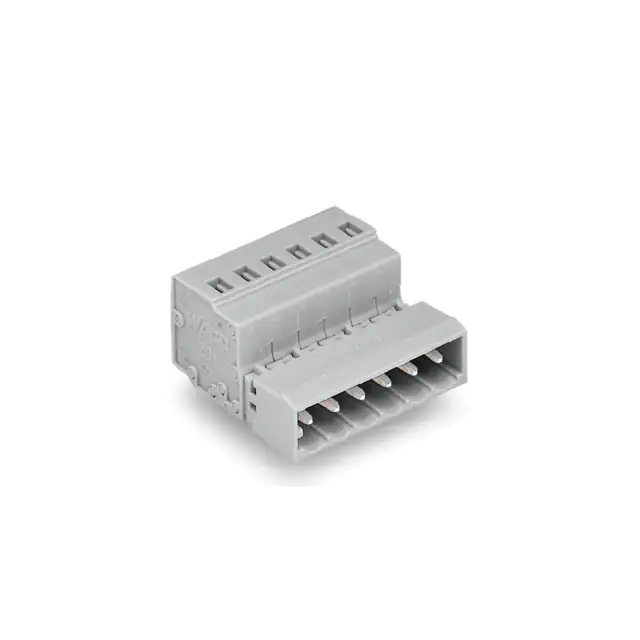

Same model may have multiple batches, images only for reference.

231-604

Name: 231-604
Brand: WAGO Corporation
SKU: 1364658
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	231-604
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	1-CONDUCTOR MALE CONNECTOR; 2.5 / 4 Position Terminal Block Plug, Male Pins 0.197" (5.00mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMIDI Classic
Package	Box
Product Status	Active
Type	Plug, Male Pins
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.197" (5.00mm)
Header Orientation	-
Plug Wire Entry	180°
Termination Style	Screwless - Spring Cage, Tension Clamp
Mounting Type	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	600 V
Wire Gauge or Range - AWG	12-28 AWG
Wire Gauge or Range - mm²	0.08-2.5mm²
Color	Gray
Temperature Range - Operating	-60°C ~ 100°C
Contact Mating Finish	Tin
Features	-
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	8-9mm
Contact Material	Electrolytic Copper
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	-
Insulation Height	0.563" (14.30mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364658-231-604
Ultra Librarian 3D Model	Ultra Librarian 231-604 CAD Model

Description

The WAGO 1364658-231-604 is a plug with male pins from the MCSMIDI Classic series.

Product Name: WAGO 1364658-231-604
Series: MCSMIDI Classic
Category: Terminal blocks, headers, plugs, and sockets
Mounting Type: Free hanging (in-line)
Temperature Range: -60°C to 100°C
Color: Gray
Housing Material: Polyamide (PA66) and nylon 6/6
Termination Style: Screwless spring cage and tension clamp
Positions: 4
Positions Per Level: 4
Wire Gauges: 12-28 AWG or 0.08-2.5mm²
Current Rating (IEC): 12A
Current Rating (UL): 15A
Voltage Rating (UL): 600V
Voltage Rating (IEC): 630V
Contact Material: Electrolytic copper
Mating Finish: Tin
Product Status: Active
