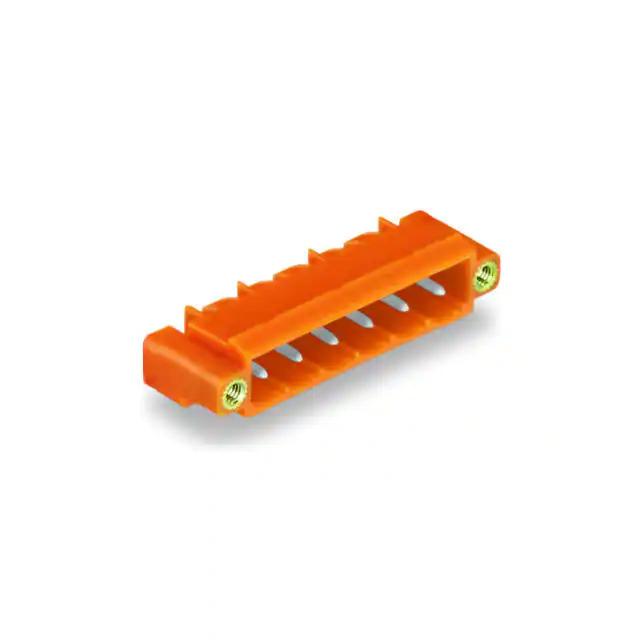

Same model may have multiple batches, images only for reference.

231-564/108-000

Name: 231-564/108-000
Brand: WAGO Corporation
SKU: 1364647
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	231-564/108-000
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	THT MALE HEADER; 1.2 X 1.2 MM SO / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMIDI Classic
Package	Box
Product Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.200" (5.08mm)
Header Orientation	90°, Right Angle
Plug Wire Entry	-
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	16A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	600 V
Wire Gauge or Range - AWG	-
Wire Gauge or Range - mm²	-
Color	Orange
Temperature Range - Operating	-60°C ~ 100°C
Contact Mating Finish	Tin
Features	Mounting Flange
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	-
Contact Material	Electrolytic Copper
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	0.150" (3.81mm)
Insulation Height	0.331" (8.40mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364647-231-564/108-000
Ultra Librarian 3D Model	Ultra Librarian 231-564/108-000 CAD Model

Alternative Products

Description

The WAGO Corporation MCSMIDI Classic series terminal block is a header with male pins and a shrouded design on all four sides.

Temperature Range: -60°C to 100°C
Current: 16A
Mounting Type: Through-Hole
Pitch: 0.200" (5.08mm)
Housing Material: Polyamide (PA66)
Flammability Rating: UL94 V-0
Positions Per Level: 4
Number of Levels: 1
Insulation Height: 0.331" (8.40mm)
Contact Material: Electrolytic Copper
Contact Finish: Tin
Features: Mounting Flange
Product Status: Active
