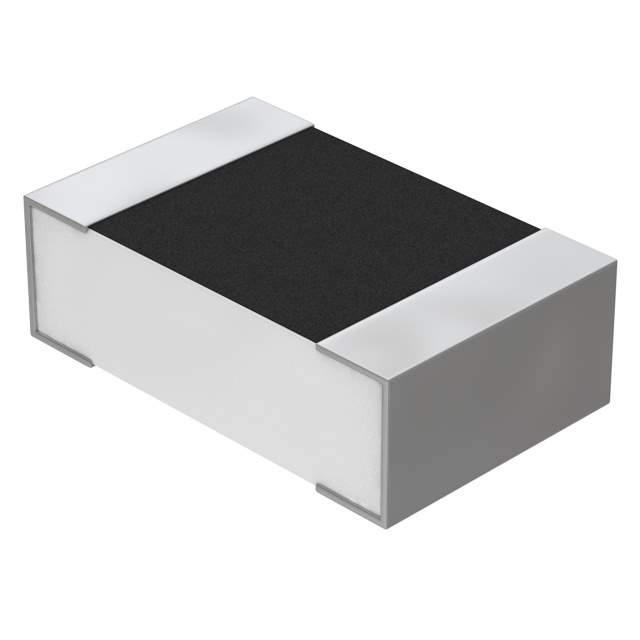

Y1624500R000T9R Real Image
Same model may have multiple batches, images only for reference.

Y1624500R000T9R

Part No Y1624500R000T9R
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 500 OHM 0.01% 1/5W 0805 / 500 Ohms ±0.01% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Moisture Resistant, Non-Inductive Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series VSMP
Package Tape & Reel
Resistance 500 Ohms
Tolerance ±0.01%
Power (Watts) 0.2W, 1/5W
Composition Metal Foil
Features Moisture Resistant, Non-Inductive
Temperature Coefficient ±0.2ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.025" (0.64mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1352122-Y1624500R000T9R
Ultra Librarian 3D Model Ultra Librarian Y1624500R000T9R CAD Model

Description

The VSMP series chip resistor from Vishay Foil Resistors is a metal foil composition resistor with a resistance of 500 ohms and a tolerance of ±0.01%.

  • Composition: Metal Foil
  • Resistance: 500 ohms
  • Tolerance: ±0.01%
  • Power Rating: 0.2W
  • Temperature Coefficient: ±0.2ppm/°C
  • Features: Moisture Resistant, Non-Inductive
  • Package Size: 0805 (2012 Metric)
  • Packaging: Tape and Reel
  • Standard Package: 1,000 pieces
  • Operating Temperature Range: -55°C to 150°C
